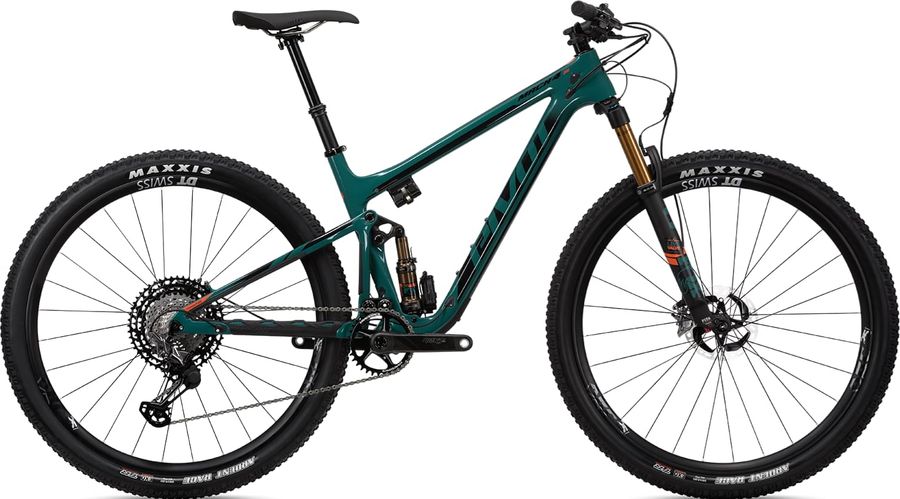

Pivot Mach 4 SL Pro X01 w/ 120mm Fork w/ Carbon Wheels 2021

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
100mm
Pivot Mach 4 SL Pro X01 w/ 120mm Fork w/ Carbon Wheels 2021

About the Pivot Mach 4 SL Pro X01 w/ 120mm Fork w/ Carbon Wheels 2021

The Pivot Mach 4 SL Pro X01 w/ 120mm Fork w/ Carbon Wheels 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 4 SL Pro X01 w/ 120mm Fork w/ Carbon Wheels 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Pro Volt (Narrow Width)
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM-LG), 150mm (XL)
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X01 Eagle DUB 34t
Shifter
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Mach 4 SL
Front suspension
Fox 34 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
457,0
502,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
595,0
623,0
647,0
678,0
d
Head tube length
85,0
95,0
108,0
119,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1110,0
1123,0
1153,0
1177,0
1210,0
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
k
Stack height
596,0
606,0
618,0
629,0
648,0
l
Reach
399,0
409,0
434,0
454,0
479,0
m
Standover height
630,0
671,0
703,0
706,0
729,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
-
