Pivot Mach 4 SL Pro XT/XTR 12 Speed w/ Fox Live Valve 2020

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm

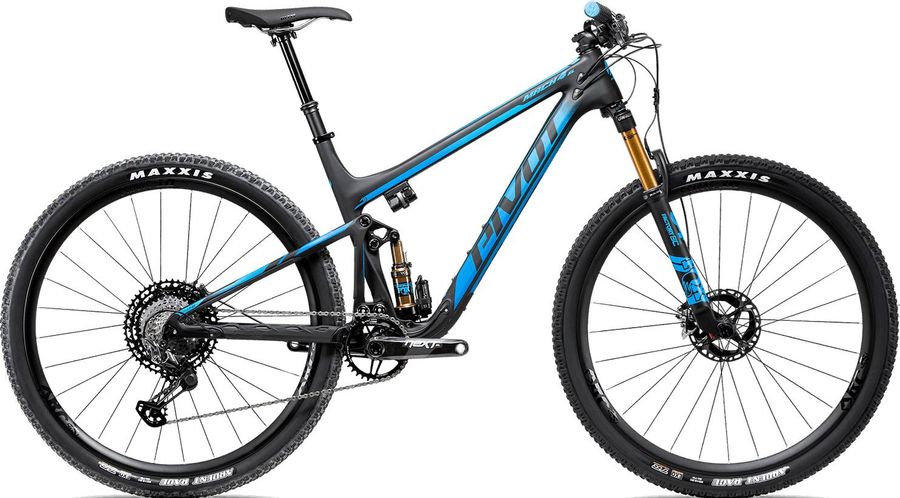

Pivot Mach 4 SL Pro XT/XTR 12 Speed w/ Fox Live Valve 2020

About the Pivot Mach 4 SL Pro XT/XTR 12 Speed w/ Fox Live Valve 2020

The Pivot Mach 4 SL Pro XT/XTR 12 Speed w/ Fox Live Valve 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 4 SL Pro XT/XTR 12 Speed w/ Fox Live Valve 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team XC/Trail - 75mm
Saddle
Phoenix WTB Pro Volt
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
KS LEV 100mm (XS), Fox Transfer 125mm (SM-LG), Fox Transfer 150mm (XL)
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
Shimano XT CenterLock - 160mmShimano XT CenterLock - 160mm
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Aeffect 34t
Shifter
Shimano XT M8100 12-Speed
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Frameset
Frame
Mach 4 SL
Rear suspension
Fox Float Factory
Front suspension
Fox 34 Factory SC
Wheels
Rims
DT Swiss M1700, w/ 36t star ratchet, 25mm - 29"
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's SealantMaxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's Sealant

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
457,0
502,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
595,0
623,0
647,0
678,0
d
Head tube length
85,0
95,0
108,0
119,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1110,0
1123,0
1153,0
1177,0
1210,0
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
k
Stack height
596,0
606,0
618,0
629,0
648,0
l
Reach
399,0
409,0
434,0
454,0
479,0
m
Standover height
630,0
671,0
703,0
706,0
729,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
-
