Pivot Mach 4 SL Race XO1 2020

MTB Trail
Groupset
SRAM X01
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm

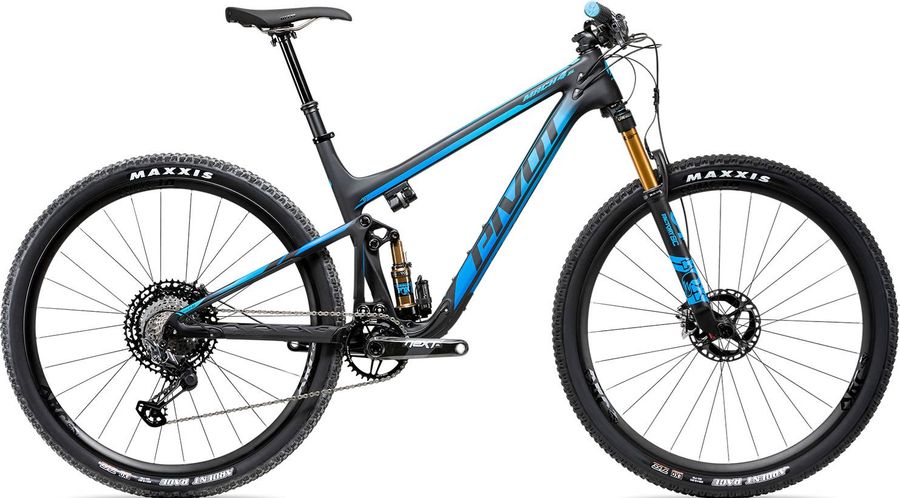

Pivot Mach 4 SL Race XO1 2020

About the Pivot Mach 4 SL Race XO1 2020

The Pivot Mach 4 SL Race XO1 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 4 SL Race XO1 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Race XC/Trail - 75mm
Saddle
Phoenix WTB Race Volt
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
KS LEV 100mm (XS), Fox Transfer 125mm (SM-LG), Fox Transfer 150mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Discs
SRAM Centerline 6-Bolt - 160mmSRAM Centerline 6-Bolt - 160mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM GX Eagle DUB 32T
Shifter
SRAM GX1 12-Speed
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM X01 Eagle Rear Derailleur 12s 276 g
Cable pull ratio
X-actuation
Color
Black, Red
Max tooth
50
Model
RD-X0-1-B1
Name
X01 Eagle Rear Derailleur
Speed
12s
Weight
276
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Frameset
Frame
Mach 4 SL
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance SC
Wheels
Rims
SUNringlé Charger Comp w/ SUNringlé SRC hub, 27mm - 29"
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's SealantMaxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's Sealant

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
457,0
502,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
595,0
623,0
647,0
678,0
d
Head tube length
85,0
95,0
108,0
119,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1110,0
1123,0
1153,0
1177,0
1210,0
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
k
Stack height
596,0
606,0
618,0
629,0
648,0
l
Reach
399,0
409,0
434,0
454,0
479,0
m
Standover height
630,0
671,0
703,0
706,0
729,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
-
