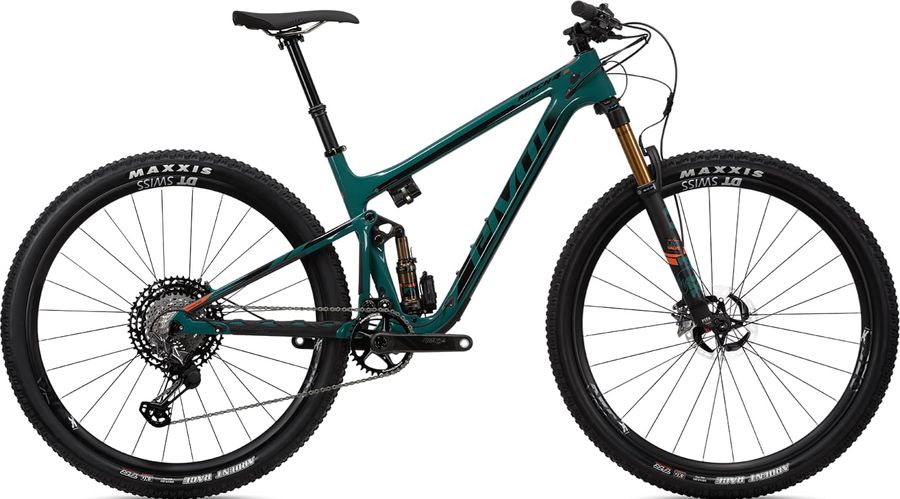

Pivot Mach 4 SL Team XTR w/ 100mm Fork & Fox Live Valve 2022
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

About the Pivot Mach 4 SL Team XTR w/ 100mm Fork & Fox Live Valve 2022
The Pivot Mach 4 SL Team XTR w/ 100mm Fork & Fox Live Valve 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Grip
|
Phoenix Factory Lock-On
|
---|
Steam
|
Phoenix Team XC/Trail
|
---|---|
Saddle
|
Phoenix WTB Team Volt (Narrow Width)
|
Headset
|
Pivot Precision Sealed Integrated Cartridge
|
Seatpost
|
Fox Transfer Factory Series 100mm (XS), 125mm (SM-LG), 150mm (XL)
|
Handlebar
|
Phoenix Team Flat Carbon - 760mm
|
Discs
|
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
|
Brakes
|
Shimano XTR BR-M9100
312 (BL-M9100) g
Hydraulic disc brake
2 piston
|
|
Crankset
|
Race Face Next SL 34t
|
---|---|
Shifter
|
Shimano XTR M9100 ISPEC EV 12-Speed
|
Chain
|
Shimano CN-M9100
242 g
|
|
|
Cassette
|
Shimano XTR CS-M9100-12
12s
HYPERGLIDE+
|
10-51T 10-12-14-16-18-21-24-28-33-39-45-51 10-51T: 367g |
|
Rear derailleur
|
Shimano XTR RD-M9100-SGS
240 g
SGS
12s
|
|
Frame
|
Mach 4 SL
|
---|---|
Rear suspension
|
Fox Float Factory
|
Front suspension
|
Fox 32 Factory SC
|
Rims
|
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
|
---|---|
Tires
|
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
|
Geometry
Size | XS | SM | MD | LG | XL |
---|---|---|---|---|---|
a
Seat tube length
|
356,0
|
394,0
|
419,0
|
457,0
|
502,0
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
c
Top tube length
|
578,0
|
591,0
|
620,0
|
643,0
|
673,0
|
d
Head tube length
|
85,0
|
95,0
|
108,0
|
119,0
|
140,0
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
f
Rake
|
-
|
-
|
-
|
-
|
-
|
g
Trail
|
-
|
-
|
-
|
-
|
-
|
h
Wheelbase
|
1,1e3
|
1113,0
|
1143,0
|
1167,0
|
1,2e3
|
i
Chainstay length
|
438,0
|
438,0
|
438,0
|
438,0
|
438,0
|
j
Bottom bracket drop
|
49,0
|
49,0
|
49,0
|
49,0
|
49,0
|
k
Stack height
|
587,0
|
597,0
|
609,0
|
619,0
|
638,0
|
l
Reach
|
412,0
|
422,0
|
447,0
|
467,0
|
492,0
|
m
Standover height
|
620,0
|
659,0
|
691,0
|
694,0
|
718,0
|
x
Bottom bracket height
|
325,0
|
325,0
|
325,0
|
325,0
|
325,0
|
y
Front center
|
-
|
-
|
-
|
-
|
-
|
