Pivot Mach 4 SL Team XTR w/ 120mm Fork 2020

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm

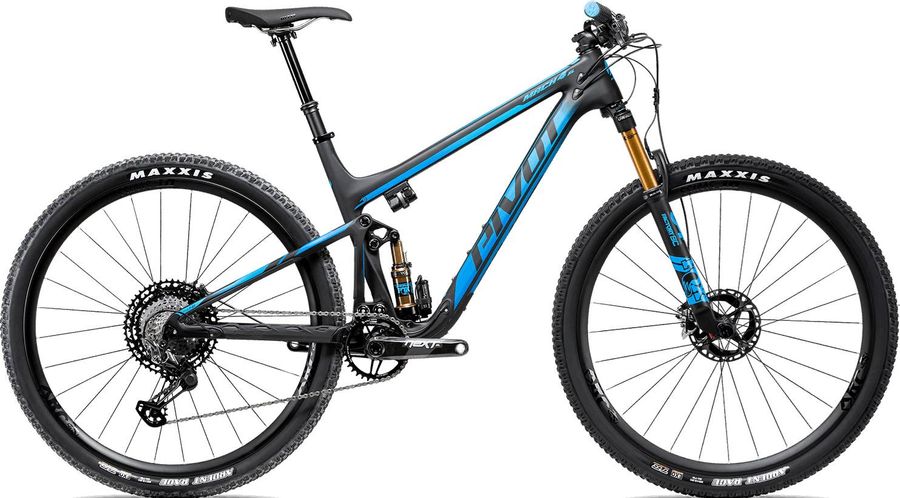

Pivot Mach 4 SL Team XTR w/ 120mm Fork 2020

About the Pivot Mach 4 SL Team XTR w/ 120mm Fork 2020

The Pivot Mach 4 SL Team XTR w/ 120mm Fork 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and remote lockout.

Features

The Pivot Mach 4 SL Team XTR w/ 120mm Fork 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB Team Volt
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
KS Rage-i 100mm (XS), Fox Transfer Performance Series 125mm (SM-LG), 150mm (XL)
Handlebar
Phoenix Team Flat Carbon
Discs
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL 34t
Shifter
Shimano XTR M9100 12-Speed
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Mach 4 SL
Front suspension
Fox 34 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XRC 1200 w/ DT Swiss 240 hub & 36t Star Ratchet, 25mm - 29"
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
457,0
502,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
595,0
623,0
647,0
678,0
d
Head tube length
85,0
95,0
108,0
119,0
140,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1110,0
1123,0
1153,0
1177,0
1210,0
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
40,0
k
Stack height
596,0
606,0
618,0
629,0
648,0
l
Reach
399,0
409,0
434,0
454,0
479,0
m
Standover height
630,0
671,0
703,0
706,0
729,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
-
