Pivot Mach 4 SL World Cup XX1 2020

MTB Cross Country
Groupset
SRAM XX1
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm

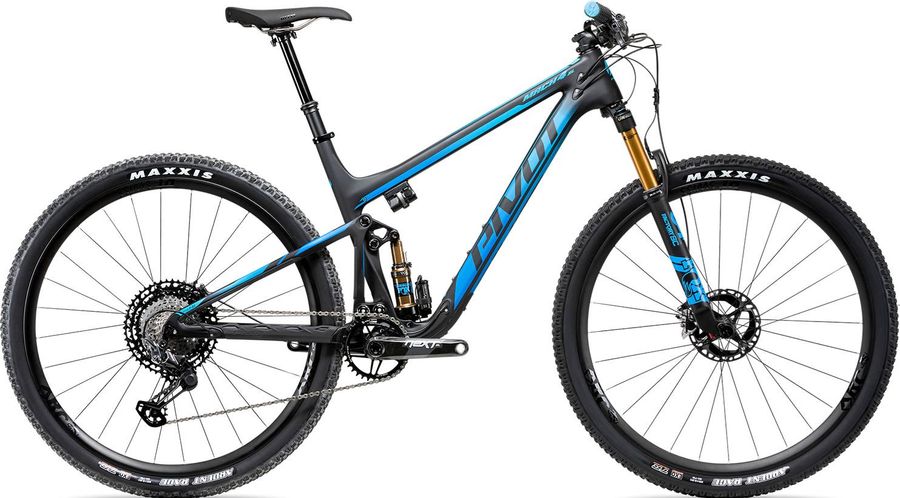

Pivot Mach 4 SL World Cup XX1 2020

About the Pivot Mach 4 SL World Cup XX1 2020

The Pivot Mach 4 SL World Cup XX1 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e remote lockout.

Features

The Pivot Mach 4 SL World Cup XX1 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team XC/Trail - 75mm
Saddle
Phoenix WTB World Cup Volt - carbon rails
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
Phoenix Team Carbon
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
SRAM CenterLine CenterLock - 160mmSRAM CenterLine CenterLock - 160mm
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM XX1 Eagle DUB SL 32T
Shifter
SRAM XX1 12-Speed
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM XX1 246 g
Chain connector
PowerLock
Chain length links
118 links
Color inner link
Silver
Color outer link
Silver
Compat speed
11s
Inner link finish
Chrome Plated
Model
CN-XX-1-A1
Name
XX1 HARD CHROME Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
246
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Mach 4 SL
Front suspension
Fox 32 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XRC 1200 SPLINE w/ 36T star ratchet, 25mm - 29"
Tires
Maxxis Aspen 29" x 2.25" TR, EXO - w/ Stan's SealantMaxxis Aspen 29" x 2.25" TR, EXO - w/ Stan's Sealant

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
457,0
502,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
578,0
591,0
620,0
643,0
673,0
d
Head tube length
85,0
95,0
108,0
119,0
140,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1,1e3
1113,0
1143,0
1167,0
1,2e3
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
49,0
49,0
49,0
49,0
49,0
k
Stack height
587,0
597,0
609,0
619,0
638,0
l
Reach
412,0
422,0
447,0
467,0
492,0
m
Standover height
620,0
659,0
691,0
694,0
718,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
Front center
-
-
-
-
-
