Pivot Mach 4 SL World Cup XX1 AXS 2022

Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

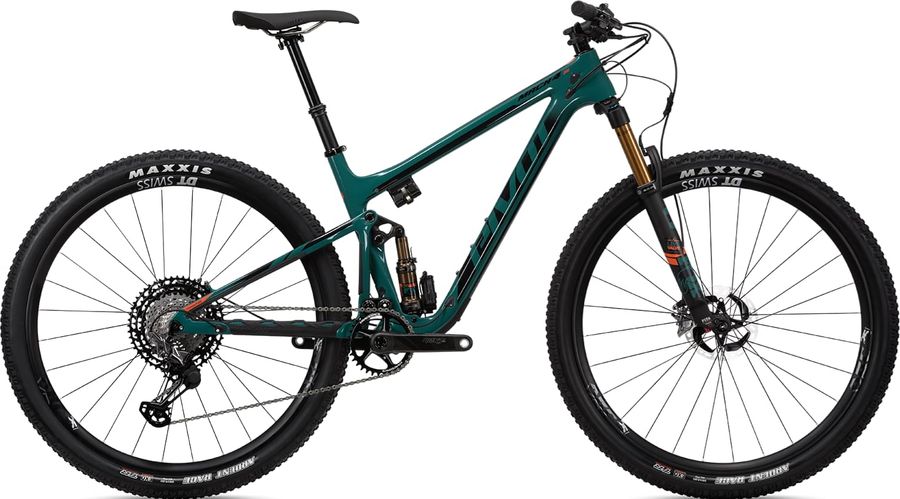

Pivot Mach 4 SL World Cup XX1 AXS 2022

About the Pivot Mach 4 SL World Cup XX1 AXS 2022

The Pivot Mach 4 SL World Cup XX1 AXS 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.


Features

The Pivot Mach 4 SL World Cup XX1 AXS 2022 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team XC/Trail
Saddle
Phoenix WTB World Cup Volt (Narrow Width) - carbon rails
Headset
Pivot Precision Sealed Integrated Cartridge
Seatpost
Phoenix Team Carbon
Handlebar
Phoenix Team Flat Carbon - 760mm
Discs
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle DUB SL 34t
Shifter
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Mach 4 SL
Front suspension
Fox 32 Factory SC
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires
Maxxis Aspen 29" x 2.25" TR, EXO, 120 TPIMaxxis Aspen 29" x 2.25" TR, EXO, 120 TPI

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
419,0
457,0
502,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
578,0
591,0
620,0
643,0
673,0
d
Head tube length
85,0
95,0
108,0
119,0
140,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1,1e3
1113,0
1143,0
1167,0
1,2e3
i
Chainstay length
438,0
438,0
438,0
438,0
438,0
j
Bottom bracket drop
49,0
49,0
49,0
49,0
49,0
k
Stack height
587,0
597,0
609,0
619,0
638,0
l
Reach
412,0
422,0
447,0
467,0
492,0
m
Standover height
620,0
659,0
691,0
694,0
718,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
Front center
-
-
-
-
-
