BikeWise

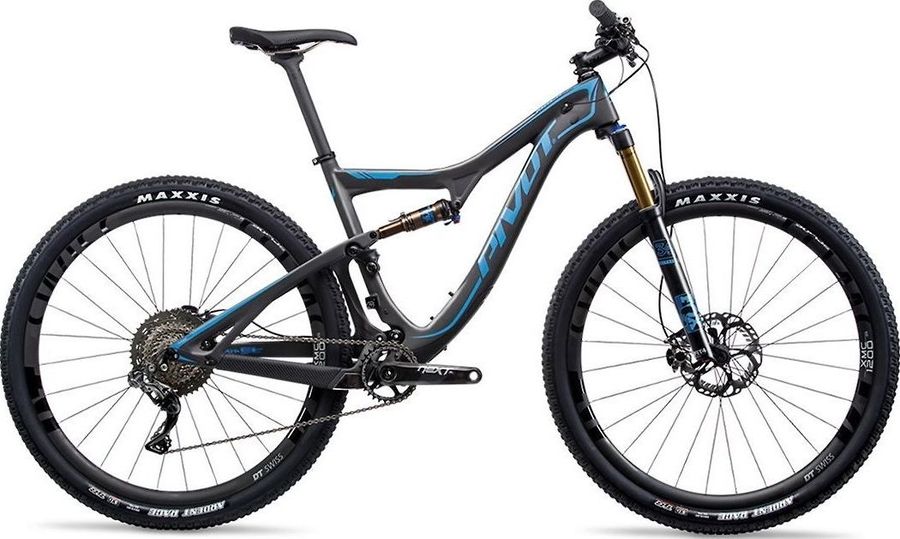

Pivot Mach 429 SL Carbon PRO X01 Eagle 2018

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
100mm
Pivot Mach 429 SL Carbon PRO X01 Eagle 2018

About the Pivot Mach 429 SL Carbon PRO X01 Eagle 2018

The Pivot Mach 429 SL Carbon PRO X01 Eagle 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 429 SL Carbon PRO X01 Eagle 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Saddle
Pivot WTB Volt Race
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seatpost
Phoenix Race, carbon (dropper options available)
Handlebar
Phoenix Team, carbon, 35mm diameter, 740mm width
Brake lever
Shimano XT M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Chain
SRAM 12-speed
Crankset
SRAM X01 Eagle
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
PF92
Cassette
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT Swiss M1700, 25mm
Tires
Maxxis Ardent Race, 2.2" EXO TR
Spokes
DT Swiss
Rear hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
DT Swiss M1700 with 36 tooth star ratchet upgrade, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM SM MD MD LG LG XL XL
a
Seat tube length
431,8
431,8
469,9
469,9
508,0
508,0
558,8
558,8
b
Seat tube angle
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
c
Top tube length
582,0
582,0
607,4
607,4
626,5
626,5
648,0
648,0
d
Head tube length
101,6
101,6
101,6
101,6
119,4
119,4
149,9
149,9
e
Head tube angle
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1087,2
1087,2
1112,9
1112,9
1132,9
1132,9
1155,5
1155,5
i
Chainstay length
446,1
446,1
446,1
446,1
446,1
446,1
446,1
446,1
j
Bottom bracket drop
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
k
Stack height
599,5
599,5
599,5
599,5
616,8
616,8
645,2
645,2
l
Reach
395,3
395,3
421,2
421,2
434,7
434,7
447,4
447,4
m
Standover height
701,4
701,4
742,0
742,0
742,0
742,0
772,5
772,5
x
Bottom bracket height
323,8
323,8
323,8
323,8
323,8
323,8
323,8
323,8
y
Front center
-
-
-
-
-
-
-
-
