Pivot Mach 429 SL Carbon RACE XT 1x 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
100mm

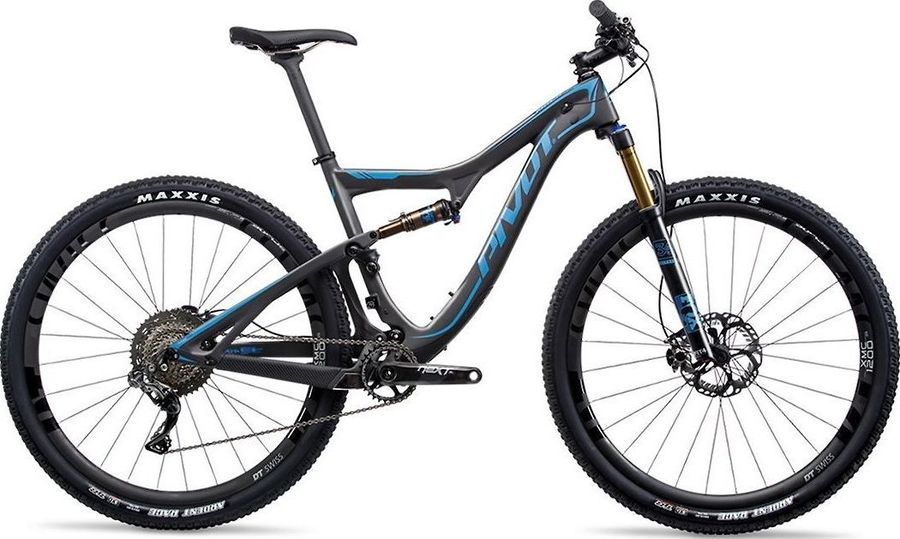

Pivot Mach 429 SL Carbon RACE XT 1x 2018

About the Pivot Mach 429 SL Carbon RACE XT 1x 2018

The Pivot Mach 429 SL Carbon RACE XT 1x 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 429 SL Carbon RACE XT 1x 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Race XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Saddle
Pivot WTB Volt Sport
Headset
Pivot Semi-Sealed Cartridge, 44mm zero stack top, 56mm zero stack bottom
Seatpost
Phoenix Sport, alloy (dropper options available)
Handlebar
Phoenix Race, aluminum, 800mm width, 35mm diameter
Brake lever
Shimano SLX M7000
Brakes
Shimano SLX BR-M7000
Drivetrain
Chain
Shimano 11-speed
Crankset
Race Face Aeffect SL
Shifter
Shimano SLX, 11-speed
Bottom bracket
PF92
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Performance
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Sun Ringle Charger Comp
Tires
Maxxis Ardent Race, 2.2" EXO TR
Spokes
Sun Ringle Charger Comp
Rear hub
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
Sun Ringle Charger Comp, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM SM MD MD LG LG XL XL
a
Seat tube length
431,8
431,8
469,9
469,9
508,0
508,0
558,8
558,8
b
Seat tube angle
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
c
Top tube length
582,0
582,0
607,4
607,4
626,5
626,5
648,0
648,0
d
Head tube length
101,6
101,6
101,6
101,6
119,4
119,4
149,9
149,9
e
Head tube angle
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1087,2
1087,2
1112,9
1112,9
1132,9
1132,9
1155,5
1155,5
i
Chainstay length
446,1
446,1
446,1
446,1
446,1
446,1
446,1
446,1
j
Bottom bracket drop
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
k
Stack height
599,5
599,5
599,5
599,5
616,8
616,8
645,2
645,2
l
Reach
395,3
395,3
421,2
421,2
434,7
434,7
447,4
447,4
m
Standover height
701,4
701,4
742,0
742,0
742,0
742,0
772,5
772,5
x
Bottom bracket height
323,8
323,8
323,8
323,8
323,8
323,8
323,8
323,8
y
Front center
-
-
-
-
-
-
-
-
