Pivot Mach 429 SL Carbon TEAM XTR 2x 2018

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
100mm

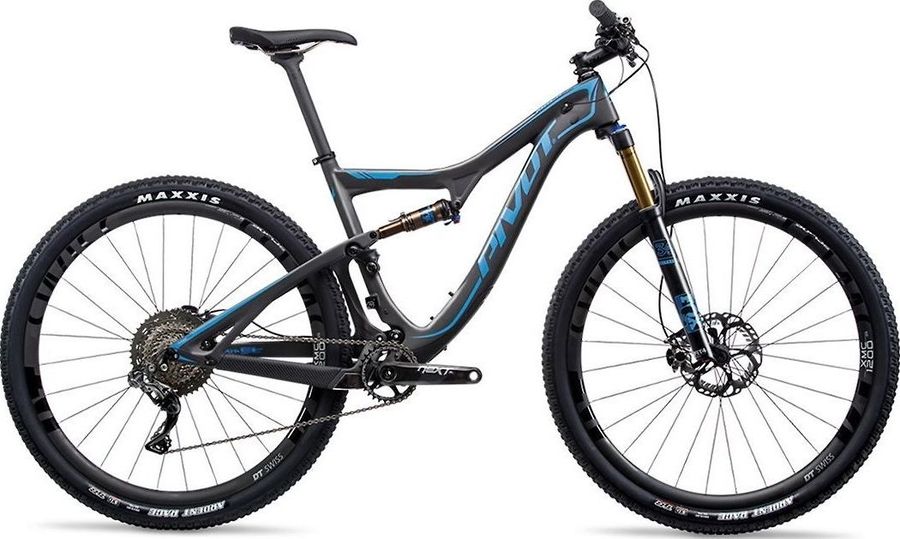

Pivot Mach 429 SL Carbon TEAM XTR 2x 2018

About the Pivot Mach 429 SL Carbon TEAM XTR 2x 2018

The Pivot Mach 429 SL Carbon TEAM XTR 2x 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 429 SL Carbon TEAM XTR 2x 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Saddle
Pivot WTB Volt Team
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seatpost
Phoenix Team Carbon (dropper options available)
Handlebar
Phoenix Team, carbon, 35mm diameter, 740mm width
Brake lever
Shimano XTR M9020 Trail
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Chain
Shimano, 11-speed
Crankset
Race Face Next SL
Shifter
Shimano XTR, 11-speed
Bottom bracket
PF92
Front derailleur
Shimano XTR, side-swing E-Type
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT Swiss XMC 1200 Carbon
Tires
Maxxis Ardent Race, 2.2" EXO TR
Spokes
DT Swiss
Rear hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm, Optional updgrades: 27.5+ wheel options
Front hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm, Optional updgrades: 27.5+ wheel options

Geometry

Size SM SM MD MD LG LG XL XL
a
Seat tube length
431,8
431,8
469,9
469,9
508,0
508,0
558,8
558,8
b
Seat tube angle
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
c
Top tube length
582,0
582,0
607,4
607,4
626,5
626,5
648,0
648,0
d
Head tube length
101,6
101,6
101,6
101,6
119,4
119,4
149,9
149,9
e
Head tube angle
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1087,2
1087,2
1112,9
1112,9
1132,9
1132,9
1155,5
1155,5
i
Chainstay length
446,1
446,1
446,1
446,1
446,1
446,1
446,1
446,1
j
Bottom bracket drop
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
k
Stack height
599,5
599,5
599,5
599,5
616,8
616,8
645,2
645,2
l
Reach
395,3
395,3
421,2
421,2
434,7
434,7
447,4
447,4
m
Standover height
701,4
701,4
742,0
742,0
742,0
742,0
772,5
772,5
x
Bottom bracket height
323,8
323,8
323,8
323,8
323,8
323,8
323,8
323,8
y
Front center
-
-
-
-
-
-
-
-
