BikeWise

Pivot Mach 429 SL Carbon TEAM XX1 Eagle 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
100mm

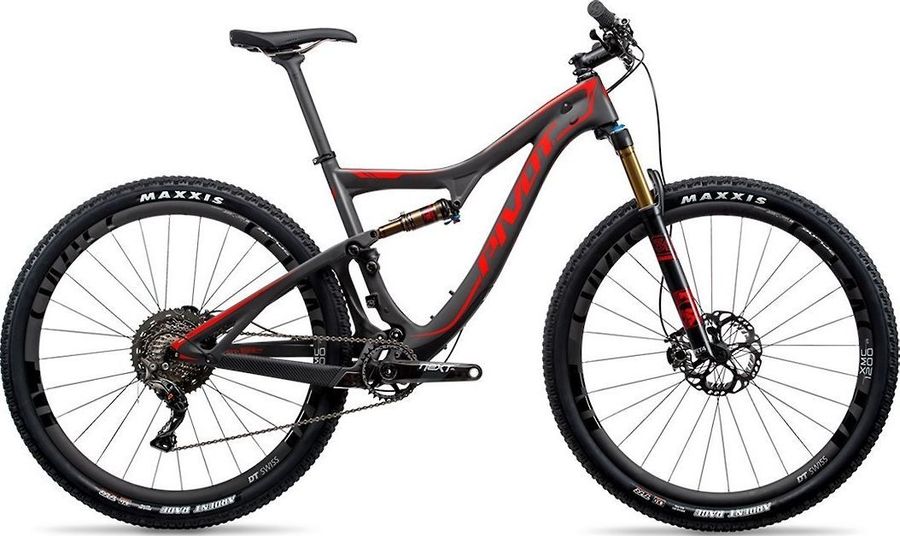

Pivot Mach 429 SL Carbon TEAM XX1 Eagle 2018

About the Pivot Mach 429 SL Carbon TEAM XX1 Eagle 2018

The Pivot Mach 429 SL Carbon TEAM XX1 Eagle 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 429 SL Carbon TEAM XX1 Eagle 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team XC, 35mm diamteter, 75mm length (S), 90mm length (M,L), 100mm (XL)
Saddle
Pivot WTB Volt Team
Headset
Pivot Precision Sealed Bearing, 44mm zero stack top, 56mm zero stack bottom
Seatpost
Phoenix Team Carbon (dropper options available)
Handlebar
Phoenix Team, carbon, 35mm diameter, 740mm width
Brake lever
SRAM Guide Ultimate
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Chain
SRAM 12-speed
Crankset
SRAM XX1 Eagle
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
PF92
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT Swiss XMC 1200 Carbon
Tires
Maxxis Ardent Race, 2.2" EXO TR
Spokes
DT Swiss
Rear hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Geometry

Size SM SM MD MD LG LG XL XL
a
Seat tube length
431,8
431,8
469,9
469,9
508,0
508,0
558,8
558,8
b
Seat tube angle
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
72,9º
c
Top tube length
582,0
582,0
607,4
607,4
626,5
626,5
648,0
648,0
d
Head tube length
101,6
101,6
101,6
101,6
119,4
119,4
149,9
149,9
e
Head tube angle
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
70,3º
f
Rake
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
h
Wheelbase
1087,2
1087,2
1112,9
1112,9
1132,9
1132,9
1155,5
1155,5
i
Chainstay length
446,1
446,1
446,1
446,1
446,1
446,1
446,1
446,1
j
Bottom bracket drop
51,0
51,0
51,0
51,0
51,0
51,0
51,0
51,0
k
Stack height
599,5
599,5
599,5
599,5
616,8
616,8
645,2
645,2
l
Reach
395,3
395,3
421,2
421,2
434,7
434,7
447,4
447,4
m
Standover height
701,4
701,4
742,0
742,0
742,0
742,0
772,5
772,5
x
Bottom bracket height
323,8
323,8
323,8
323,8
323,8
323,8
323,8
323,8
y
Front center
-
-
-
-
-
-
-
-
