Pivot Mach 429 Trail RACE X01 2018
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
116mm

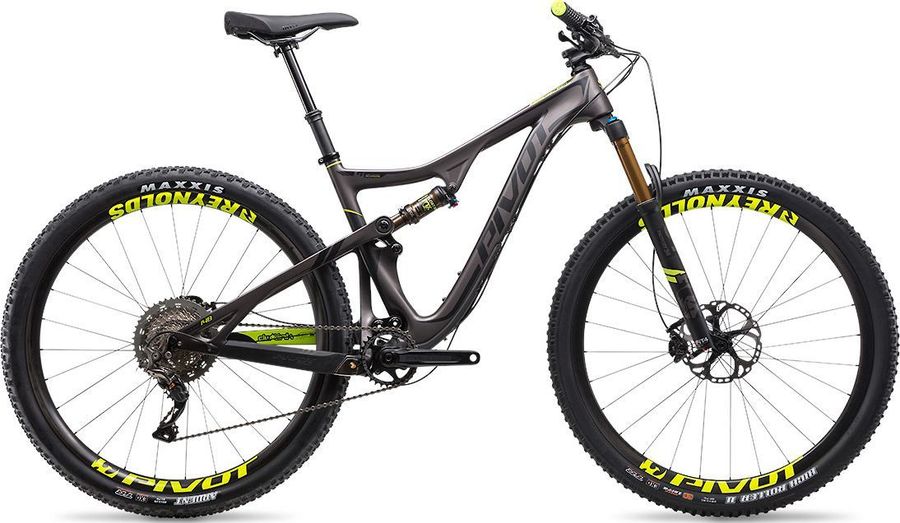

About the Pivot Mach 429 Trail RACE X01 2018
The Pivot Mach 429 Trail RACE X01 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Phoenix Team Padloc
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Phoenix Team Trail, 35mm clamp, 45mm length (S), 65mm length (M-XL)
|
|---|---|
|
Saddle
|
Pivot WTB Vigo Race
|
|
Headset
|
Pivot Semi-Sealed Cartridge
|
|
Seatpost
|
Phoenix Race, aluminum (dropper options available)
|
|
Handlebar
|
Phoenix Race, aluminum, 35mm diameter, 750mm width
|
|
Brake lever
|
Shimano SLX M7000
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Chain
|
SRAM Eagle, 12-speed
|
|---|---|
|
Crankset
|
SRAM X1 Eagle
|
|
Shifter
|
SRAM GX1 Eagle, 12-speed
|
|
Bottom bracket
|
PF92
|
|
Cassette
|
SRAM X01 Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Rear suspension
|
Fox Float DPS
|
|
Front suspension
|
Fox 34 Performance
|
|
Rims
|
Sun Ringle Duroc, 30mm
|
|---|---|
|
Tires
|
Front: Maxxis High Roller II, 2.3" TR 3C EXO MaxxTerra, Rear: Maxxis Ardent, 2.25" TR EXO
|
|
Spokes
|
Sun Ringle Duroc
|
|
Rear hub
|
Sun Ringle Duroc, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
|
Front hub
|
Sun Ringle Duroc, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,4
|
444,5
|
482,6
|
520,7
|
|
b
Seat tube angle
|
72,8º
|
72,8º
|
72,8º
|
72,8º
|
|
c
Top tube length
|
586,8
|
613,5
|
635,1
|
656,6
|
|
d
Head tube length
|
101,6
|
101,6
|
119,4
|
149,9
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
67,5º
|
67,5º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
1116,4
|
1141,5
|
1161,3
|
1186,5
|
|
i
Chainstay length
|
449,6
|
449,6
|
449,6
|
449,6
|
|
j
Bottom bracket drop
|
39,0
|
39,0
|
39,0
|
39,0
|
|
k
Stack height
|
613,7
|
614,2
|
631,0
|
659,4
|
|
l
Reach
|
389,9
|
415,6
|
429,6
|
441,8
|
|
m
Standover height
|
731,3
|
742,5
|
750,4
|
769,4
|
|
x
Bottom bracket height
|
335,0
|
335,0
|
335,0
|
335,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
