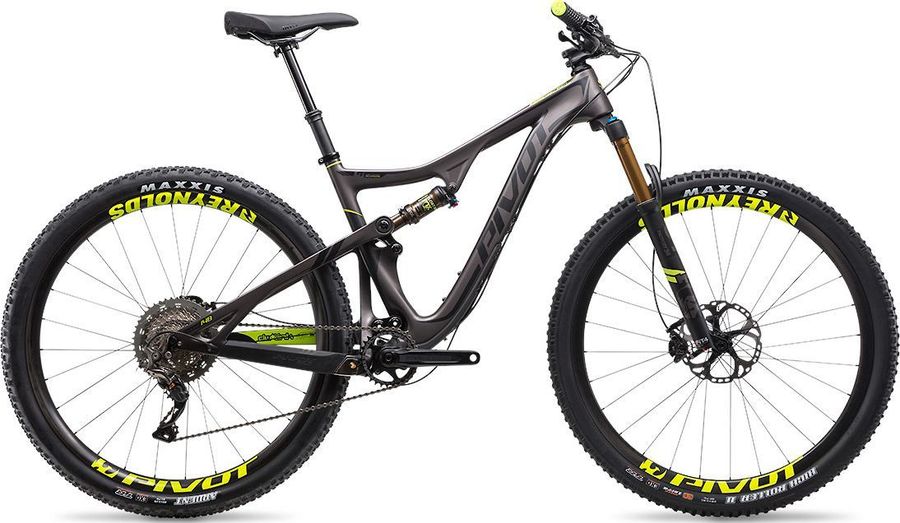

Pivot Mach 429 Trail TEAM XX1 Eagle 2018

MTB Cross Country

Groupset

SRAM XX1 Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

130mm

Rear travel

116mm

About the Pivot Mach 429 Trail TEAM XX1 Eagle 2018

The Pivot Mach 429 Trail TEAM XX1 Eagle 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 429 Trail TEAM XX1 Eagle 2018 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Phoenix Team Padloc
Pedals	None included

Components
Steam	Phoenix Team Trail, 35mm clamp, 45mm length (S), 65mm length (M-XL)
Saddle	Pivot WTB Vigo Team
Headset	Pivot Precision Sealed Bearing
Seatpost	FOX Transfer, 125mm or 150mm drop (KS LEV Integra option for S)
Handlebar	Phoenix Team, carbon, 35mm diameter, 760mm width
Brake lever	SRAM Guide Ultimate
Brakes	SRAM Guide Ultimate Hydraulic 360 g
Application MTB Blade material Carbon Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Arctic Grey Anodized, Black Anodized Model DB-GDE-ULT-A1 Name Guide Ultimate Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts) Weight 360

Drivetrain
Chain	SRAM Eagle, 12-speed
Crankset	SRAM XX1 Eagle
Shifter	SRAM XX1 Eagle, 12-speed
Bottom bracket	PF92
Cassette	SRAM XX1 XG1299 Eagle
Rear derailleur	SRAM XX1 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar Max tooth 52 Model RD-XX-1-B2 Name XX1 Eagle Rear Derailleur Speed 12s

Frameset
Frame	Carbon Fiber
Front suspension	Fox 34 Factory
Rear suspension	Fox Float DPS Factory Kashima

Wheels
Rims	Reynolds Enduro Carbon
Tires	Front: Maxxis High Roller II, 2.3" TR 3C EXO MaxxTerra, Rear: Maxxis Ardent, 2.25" TR EXO
Spokes	Reynolds Enduro
Rear hub	Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Front hub	Industry Nine, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XX1 Eagle 1 × 12

Crank: 30T

Cassette: 10-50T

Speeds: 12s

Gearing

Average

0,6

Average

Compared to similar bikes, the Pivot Mach 429 Trail TEAM XX1 Eagle 2018 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	406,4	444,5	482,6	520,7
b Seat tube angle	72,8º	72,8º	72,8º	72,8º
c Top tube length	586,8	613,5	635,1	656,6
d Head tube length	101,6	101,6	119,4	149,9
e Head tube angle	67,5º	67,5º	67,5º	67,5º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	1116,4	1141,5	1161,3	1186,5
i Chainstay length	449,6	449,6	449,6	449,6
j Bottom bracket drop	39,0	39,0	39,0	39,0
k Stack height	613,7	614,2	631,0	659,4
l Reach	389,9	415,6	429,6	441,8
m Standover height	731,3	742,5	750,4	769,4
x Bottom bracket height	335,0	335,0	335,0	335,0
y Front center	-	-	-	-
