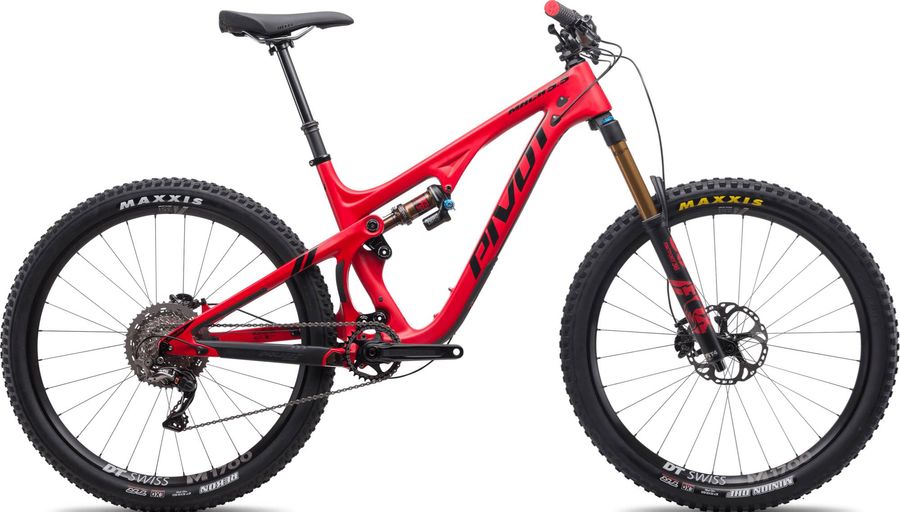

Pivot Mach 5.5 Carbon Pro X01 2019

MTB Enduro
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Pivot Mach 5.5 Carbon Pro X01 2019

About the Pivot Mach 5.5 Carbon Pro X01 2019

The Pivot Mach 5.5 Carbon Pro X01 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 5.5 Carbon Pro X01 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail - 45mm (XS, SM), 55mm (MD-XL)
Saddle
Phoenix WTB Pro Vigo
Headset
Pivot Precision Sealed Cartridge
Seatpost
KS LEV 100mm (XS), KS LEV 125mm (SM), KS Rage-i 150mm(MD), Fox Transfer 150mm (LG,XL)
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Discs
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM XO1 Eagle DUB 32t
Shifter
SRAM XO1 12-Speed
Rear derailleur
SRAM X01 Eagle Rear Derailleur 12s 276 g
Cable pull ratio
X-actuation
Color
Black, Red
Max tooth
50
Model
RD-X0-1-B1
Name
X01 Eagle Rear Derailleur
Speed
12s
Weight
276
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Mach 5.5 Carbon
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub, 35mm - 27.5"
Tires
Maxxis Minion 27.5" x 2.6" TR, EXOMaxxis Rekon 27.5" x 2.6" TR, EXO

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
426,0
457,0
495,0
b
Seat tube angle
74,25º
74,25º
74,25º
74,25º
74,25º
c
Top tube length
565,0
591,0
624,0
646,0
674,0
d
Head tube length
90,0
105,0
115,0
125,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1123,0
1150,0
1184,0
1207,0
1236,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
589,0
603,0
613,0
622,0
631,0
l
Reach
397,0
417,0
447,0
467,0
492,0
m
Standover height
693,0
697,0
698,0
699,0
718,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
-
-
-
-
-
