Pivot Mach 5.5 Carbon Pro X01 Eagle 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

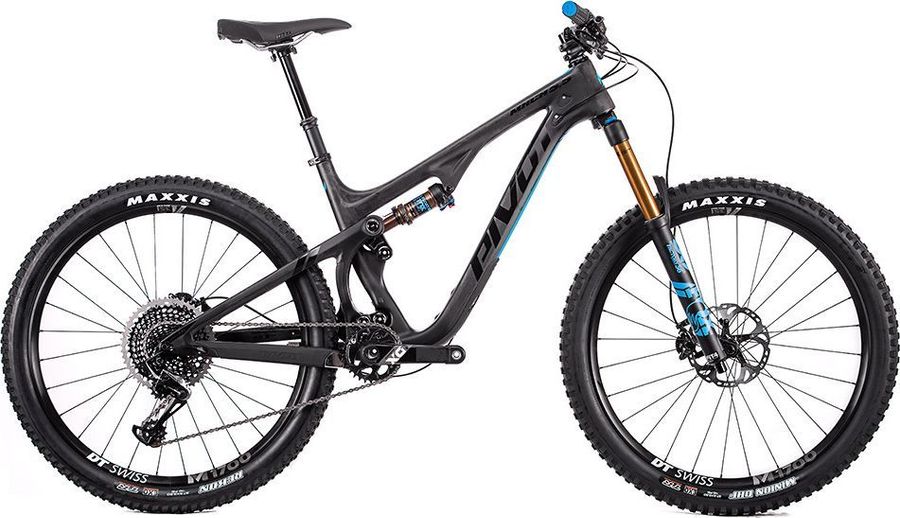

Pivot Mach 5.5 Carbon Pro X01 Eagle 2018

About the Pivot Mach 5.5 Carbon Pro X01 Eagle 2018

The Pivot Mach 5.5 Carbon Pro X01 Eagle 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Mach 5.5 Carbon Pro X01 Eagle 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Vigo Pro
Headset
Pivot Precision Sealed Cartridge
Seatpost
FOX Transfer: 125mm (S/M), 150mm (L/XL), LEV Integra: XS
Handlebar
Phoenix Team Carbon, 35mm x 760mm
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Chain
SRAM
Crankset
SRAM X01 Eagle, 175mm
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
PF92
Cassette
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss M1700 27.5" x 35mm wheels
Tires
Maxxis Minion DHF WT 27.5" x 2.6" front, Maxxis Rekon WT 27.5" x 2.6" rear
Spokes
DT Swiss M1700 27.5" x 35mm wheels
Rear hub
DT Swiss M1700 27.5" x 35mm wheels, Upgrade optidon: Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs
Front hub
DT Swiss M1700 27.5" x 35mm wheels, Upgrade optidon: Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs

Geometry

Size XS SM MD LG XL
a
Seat tube length
355,6
393,7
425,5
457,2
495,3
b
Seat tube angle
73,8º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
564,4
590,5
623,3
645,9
673,6
d
Head tube length
89,9
104,9
115,1
125,0
134,9
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1122,9
1149,1
1183,1
1207,0
1236,0
i
Chainstay length
436,6
436,6
436,6
436,6
436,6
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
589,0
603,0
612,1
621,5
630,9
l
Reach
396,5
416,6
446,5
466,6
491,5
m
Standover height
692,4
697,0
697,5
698,2
717,8
x
Bottom bracket height
340,4
340,4
340,4
340,4
340,4
y
Front center
-
-
-
-
-
