BikeWise

Pivot Mach 5.5 Carbon Pro XT/XTR w/ Carbon Wheels 2022

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm
Pivot Mach 5.5 Carbon Pro XT/XTR w/ Carbon Wheels 2022

About the Pivot Mach 5.5 Carbon Pro XT/XTR w/ Carbon Wheels 2022

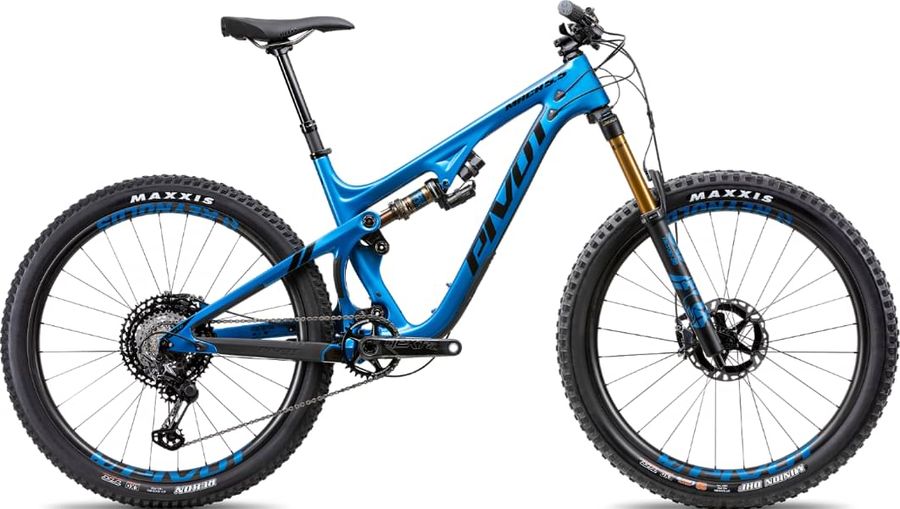

The Pivot Mach 5.5 Carbon Pro XT/XTR w/ Carbon Wheels 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Pivot Mach 5.5 Carbon Pro XT/XTR w/ Carbon Wheels 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Pro Vigo (MD-XL)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD-LG), 175mm (XL)
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Discs
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Æffect R 32t
Shifter
Shimano XT M8100 ISPEC EV 12-Speed
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Mach 5.5
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 27.5"15x110 F/12x148 R
Tires
Maxxis Minion DHF 27.5" x 2.5" TR, EXO+Maxxis Dissector 27.5" x 2.4" TR, EXO

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
426,0
457,0
495,0
b
Seat tube angle
74,25º
74,25º
74,25º
74,25º
74,25º
c
Top tube length
565,0
591,0
624,0
646,0
674,0
d
Head tube length
90,0
105,0
115,0
125,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1123,0
1150,0
1184,0
1207,0
1236,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
589,0
603,0
613,0
622,0
631,0
l
Reach
397,0
417,0
447,0
467,0
492,0
m
Standover height
693,0
697,0
698,0
699,0
718,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
-
-
-
-
-
