Pivot Mach 5.5 Carbon Team XTR Di2 1X 2018

MTB Trail
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

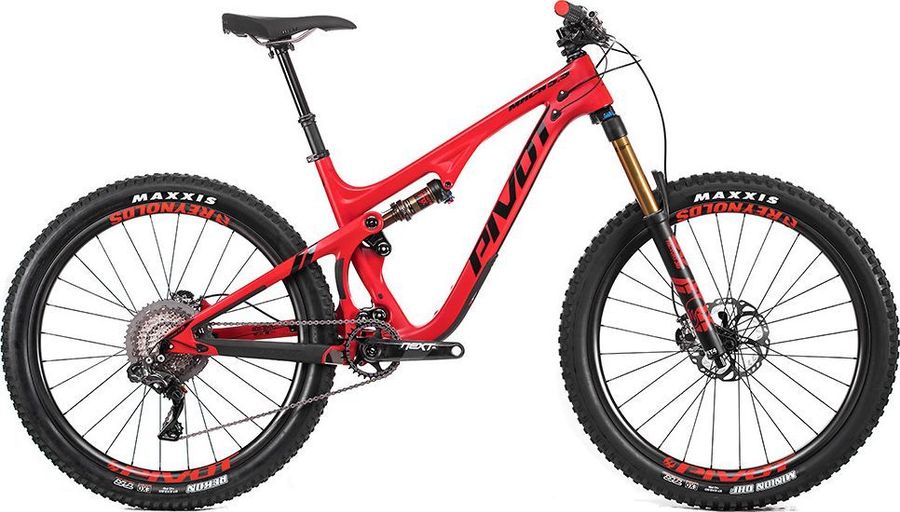

Pivot Mach 5.5 Carbon Team XTR Di2 1X 2018

About the Pivot Mach 5.5 Carbon Team XTR Di2 1X 2018

The Pivot Mach 5.5 Carbon Team XTR Di2 1X 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Mach 5.5 Carbon Team XTR Di2 1X 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Vigo Team
Headset
Pivot Precision Sealed Cartridge
Seatpost
FOX Transfer: 125mm (S/M), 150mm (L/XL), LEV Integra: XS
Handlebar
Phoenix Team Carbon, 35mm x 760mm
Brake lever
Shimano XTR
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Chain
Shimano
Crankset
Race Face Next SL, 175mm
Shifter
Shimano XTR Di2, 11-speed
Bottom bracket
PF92
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds 27.5" x 36mm Carbon wheels
Tires
Maxxis Minion DHF WT 27.5" x 2.6" front, Maxxis Rekon WT 27.5" x 2.6" rear
Spokes
Reynolds 27.5" x 36mm Carbon wheels
Rear hub
Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs
Front hub
Reynolds 27.5" x 36mm Carbon wheels with Industry Nine hubs

Geometry

Size XS SM MD LG XL
a
Seat tube length
355,6
393,7
425,5
457,2
495,3
b
Seat tube angle
73,8º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
564,4
590,5
623,3
645,9
673,6
d
Head tube length
89,9
104,9
115,1
125,0
134,9
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1122,9
1149,1
1183,1
1207,0
1236,0
i
Chainstay length
436,6
436,6
436,6
436,6
436,6
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
589,0
603,0
612,1
621,5
630,9
l
Reach
396,5
416,6
446,5
466,6
491,5
m
Standover height
692,4
697,0
697,5
698,2
717,8
x
Bottom bracket height
340,4
340,4
340,4
340,4
340,4
y
Front center
-
-
-
-
-
