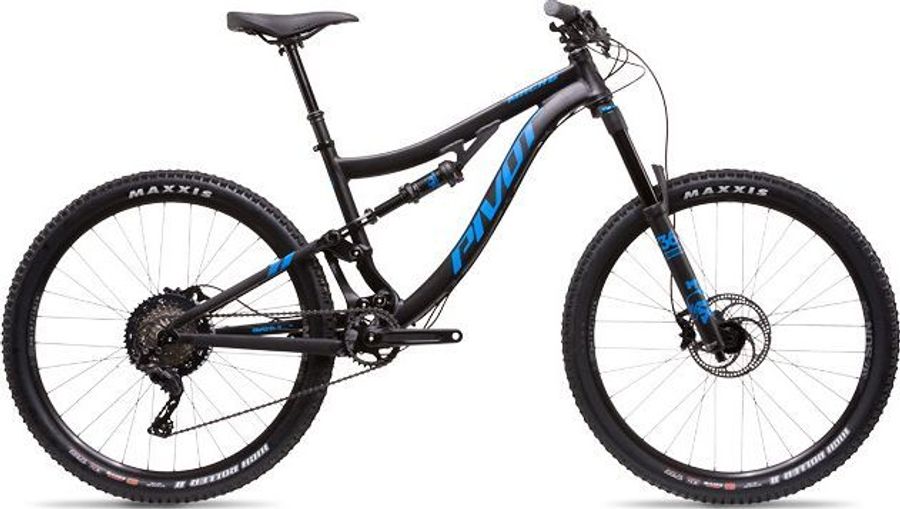

Pivot Mach 6 Aluminum RACE XT 1x 2018

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
155mm
Pivot Mach 6 Aluminum RACE XT 1x 2018

About the Pivot Mach 6 Aluminum RACE XT 1x 2018

The Pivot Mach 6 Aluminum RACE XT 1x 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 6 Aluminum RACE XT 1x 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Saddle
WTB Vigo Race
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Handlebar
Phoenix Race Aluminum, 35mm diameter, 800mm width
Brake lever
Shimano M6000
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Chain
Shimano
Crankset
Race Face Aeffect SL
Shifter
Shimano SLX, 11-speed
Bottom bracket
PF92
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 36 Performance
Wheels
Rims
Sun Ringle Duroc, 30mm
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Rear hub
Sun Ringle Duroc
Front hub
Sun Ringle Duroc

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
394,0
426,0
457,0
495,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
547,0
570,0
613,0
636,0
664,0
d
Head tube length
90,0
102,0
108,0
120,0
130,0
e
Head tube angle
65,75º
65,75º
65,75º
65,75º
65,75º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1109,0
1138,0
1182,0
1207,0
1230,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
578,0
588,0
597,0
615,0
618,0
l
Reach
372,0
392,0
442,0
462,0
487,0
m
Standover height
708,0
718,0
728,0
745,0
757,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
-
-
-
-
-
