Pivot Mach 6 Carbon Race X01 2021

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
155mm

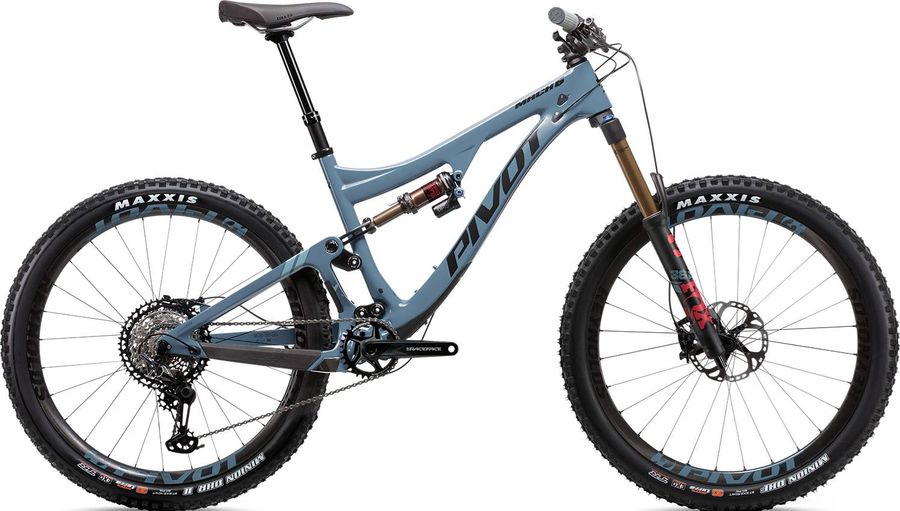

Pivot Mach 6 Carbon Race X01 2021

About the Pivot Mach 6 Carbon Race X01 2021

The Pivot Mach 6 Carbon Race X01 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 6 Carbon Race X01 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Race Vigo
Headset
Pivot Semi-Sealed Cartridge
Seatpost
Fox Transfer Performance Series 100mm (XS-SM) 125mm (MD-LG), 150mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Discs
SRAM Centerline 6-bolt - 180mmSRAM Centerline 6-bolt - 180mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM Descendant 7k Eagle DUB 32t
Shifter
SRAM GX Eagle 12-Speed
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Mach 6
Rear suspension
Fox DPX2 Performance
Front suspension
Fox 36 Performance
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm -27.5”
Tires
Maxxis Minion DHF 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 27.5" x 2.4" WT, TR, 3C, EXO+

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
394,0
426,0
457,0
495,0
b
Seat tube angle
73,0º
73,0º
74,75º
74,75º
74,75º
c
Top tube length
547,0
570,0
613,0
636,0
664,0
d
Head tube length
90,0
102,0
108,0
120,0
130,0
e
Head tube angle
65,8º
65,8º
65,8º
65,8º
65,8º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1109,0
1138,0
1182,0
1207,0
1230,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
578,0
588,0
597,0
615,0
618,0
l
Reach
372,0
392,0
442,0
462,0
487,0
m
Standover height
708,0
720,0
728,0
745,0
757,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
-
-
-
-
-
