Pivot Mach 6 Carbon TEAM XTR Di2 1x 2018

MTB Enduro
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
155mm

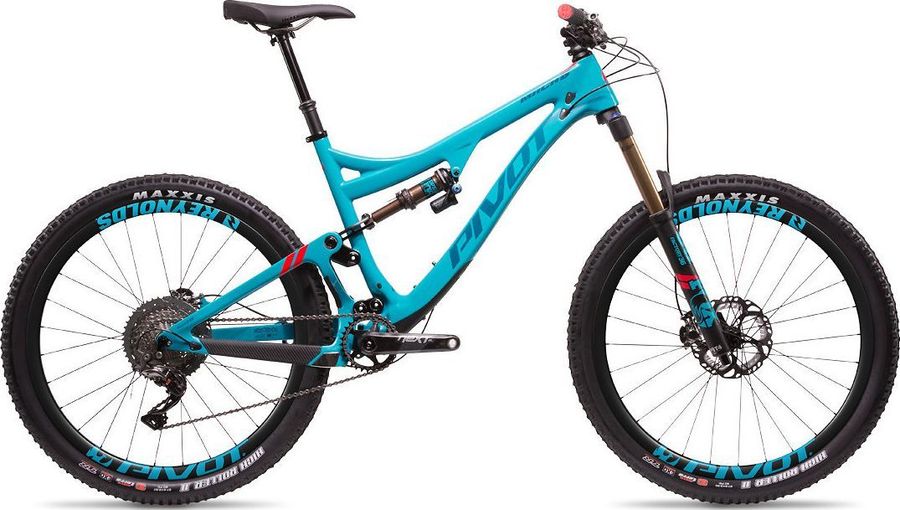

Pivot Mach 6 Carbon TEAM XTR Di2 1x 2018

About the Pivot Mach 6 Carbon TEAM XTR Di2 1x 2018

The Pivot Mach 6 Carbon TEAM XTR Di2 1x 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 6 Carbon TEAM XTR Di2 1x 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Saddle
WTB Vigo Team
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Brake lever
Shimano XTR M9020
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Chain
Shimano
Crankset
Race Face Next SL
Shifter
Shimano XTR Di2, Right, 11-speed
Bottom bracket
PF92
Rear derailleur
Shimano XTR RD-M9050 Di2
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Carbon
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Spokes
Industry Nine
Rear hub
Industry Nine
Front hub
Industry Nine

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
394,0
426,0
457,0
495,0
b
Seat tube angle
73,0º
73,0º
74,0º
74,0º
74,0º
c
Top tube length
547,0
570,0
613,0
636,0
664,0
d
Head tube length
90,0
102,0
108,0
120,0
130,0
e
Head tube angle
65,75º
65,75º
65,75º
65,75º
65,75º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1109,0
1138,0
1182,0
1207,0
1230,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
578,0
588,0
597,0
615,0
618,0
l
Reach
372,0
392,0
442,0
462,0
487,0
m
Standover height
708,0
718,0
728,0
745,0
757,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
-
-
-
-
-
