Pivot Mach 6 Carbon Team XX1 AXS 2021

MTB Enduro
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
155mm

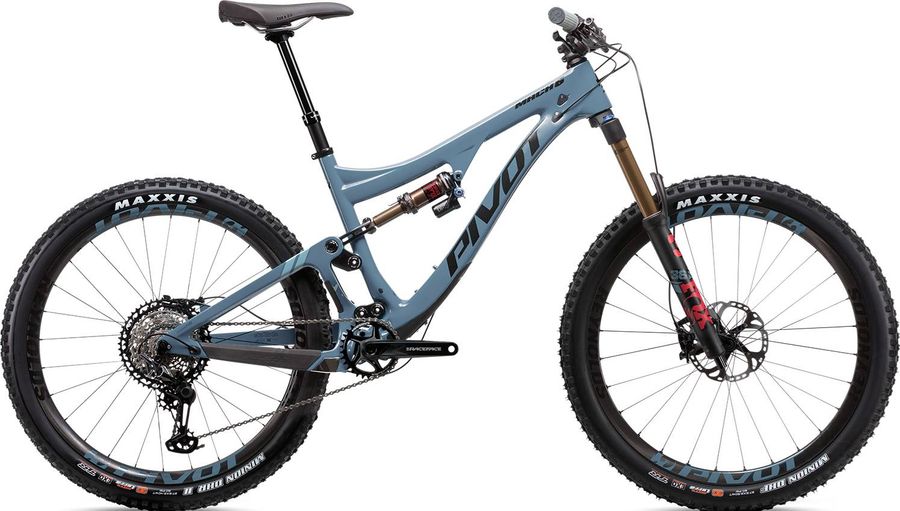

Pivot Mach 6 Carbon Team XX1 AXS 2021

About the Pivot Mach 6 Carbon Team XX1 AXS 2021

The Pivot Mach 6 Carbon Team XX1 AXS 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 6 Carbon Team XX1 AXS 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Team Vigo
Headset
Pivot Precision Sealed Cartridge
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-XL)
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Discs
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Brakes
SRAM G2 Ultimate Hydraulic 238 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized w/Rainbow Hardware, Gloss Black, Gloss Black w/Rainbow Hardware, Lunar Grey
Model
DB-G2-ULT-A1
Name
G2 Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
238
Drivetrain
Crankset
SRAM XX1 Eagle DUB SL 32t
Shifter
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Mach 6
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ DT Swiss hub & 36t Star Ratchet, 34mm - 27.5"
Tires
Maxxis Minion DHF 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 27.5" x 2.4" WT, TR, 3C, EXO+

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
394,0
426,0
457,0
495,0
b
Seat tube angle
73,0º
73,0º
74,75º
74,75º
74,75º
c
Top tube length
547,0
570,0
613,0
636,0
664,0
d
Head tube length
90,0
102,0
108,0
120,0
130,0
e
Head tube angle
65,8º
65,8º
65,8º
65,8º
65,8º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1109,0
1138,0
1182,0
1207,0
1230,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
578,0
588,0
597,0
615,0
618,0
l
Reach
372,0
392,0
442,0
462,0
487,0
m
Standover height
708,0
720,0
728,0
745,0
757,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
-
-
-
-
-
