Pivot Mach 6 Carbon TEAM XX1 Eagle 2018

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
155mm

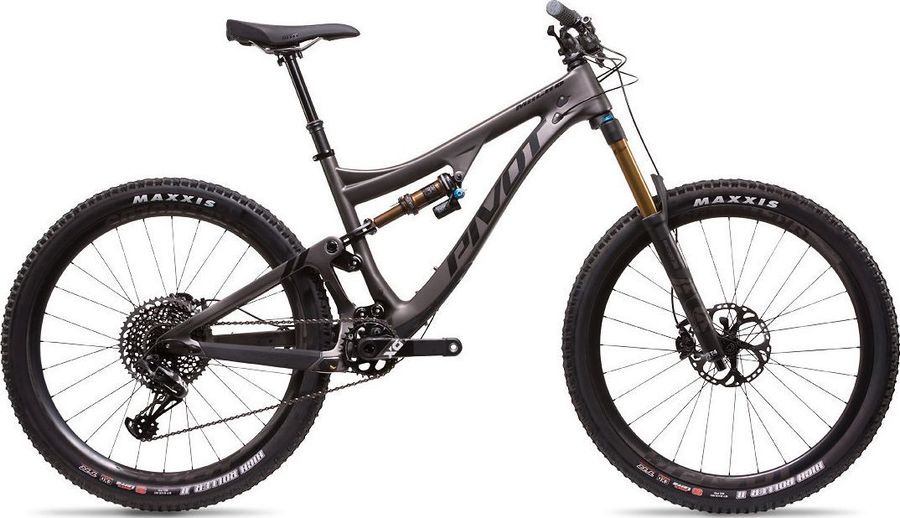

Pivot Mach 6 Carbon TEAM XX1 Eagle 2018

About the Pivot Mach 6 Carbon TEAM XX1 Eagle 2018

The Pivot Mach 6 Carbon TEAM XX1 Eagle 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Mach 6 Carbon TEAM XX1 Eagle 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Saddle
WTB Vigo Pro
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Brake lever
SRAM Guide Ultimate
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Chain
SRAM
Crankset
SRAM XX1 Eagle
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
PF92
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Carbon
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Spokes
Industry Nine
Rear hub
Industry Nine
Front hub
Industry Nine

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
394,0
426,0
457,0
495,0
b
Seat tube angle
73,0º
73,0º
74,0º
74,0º
74,0º
c
Top tube length
547,0
570,0
613,0
636,0
664,0
d
Head tube length
90,0
102,0
108,0
120,0
130,0
e
Head tube angle
65,75º
65,75º
65,75º
65,75º
65,75º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1109,0
1138,0
1182,0
1207,0
1230,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
9,0
9,0
9,0
9,0
9,0
k
Stack height
578,0
588,0
597,0
615,0
618,0
l
Reach
372,0
392,0
442,0
462,0
487,0
m
Standover height
708,0
718,0
728,0
745,0
757,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
-
-
-
-
-
