Pivot Phoenix 29 Race Zee 2019

MTB Downhill
Groupset
Shimano Zee
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
203mm

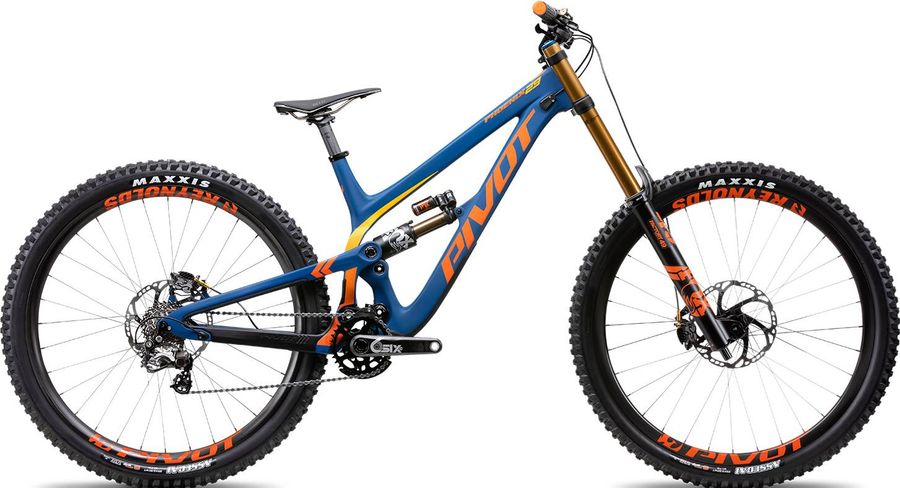

Pivot Phoenix 29 Race Zee 2019

About the Pivot Phoenix 29 Race Zee 2019

The Pivot Phoenix 29 Race Zee 2019 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Zee drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Pivot Phoenix 29 Race Zee 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team DH - 45mm
Saddle
Phoenix WTB Race High Tail
Headset
Pivot Precision Sealed Cartridge - DH
Seatpost
Phoenix Race Aluminum
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Discs
Shimano SLX RT66 6-Bolt - 203mm Shimano SLX RT66 6-Bolt - 180mm
Brakes
Shimano ZEE BR-M640 314 ** g Hydraulic disc brake 4 piston
Average weight (g)
314 **
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M640
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
H01A Resin
H03A Resin
Pad standard
D01S Resin
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Atlas 36t - 165mm
Shifter
Shimano Zee M640 10-Speed
Rear derailleur
Shimano Zee RD-M640-SS 275 g SS 10s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T(Freeride spec),
28T(DH spec)
Lower pulley min
23T
Model
RD-M640-SS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SS
Speeds
10
Upper pulley max
12T
Upper pulley min
11T
Total capacity
25T
Chain
Shimano CN-6701 267 g
Average weight (g)
267
Chromizing treatment roller link pin
Model
CN-6701
Pin link plate
Zinc-Alloy Plated
Roller link plate
Gray
Type
HG 10-speed
Cassette
Shimano CS-5700
Frameset
Frame
Phoenix 29
Front suspension
Fox 40 Performance Elite
Rear suspension
Fox Float X2 Factory
Wheels
Rims
Sun Ringle SD37 - 29"
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING

Geometry

Size SM MD LG XL
a
Seat tube length
432,0
432,0
432,0
432,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
568,0
588,0
618,0
643,0
d
Head tube length
106,0
106,0
106,0
106,0
e
Head tube angle
62,5º
62,5º
62,5º
62,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1225,0
1245,0
1276,0
1,3e3
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
638,0
638,0
638,0
638,0
l
Reach
408,0
428,0
458,0
483,0
m
Standover height
672,0
672,0
672,0
672,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
-
-
-
-
