Groupset
Shimano Zee
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
203mm
Rear travel
190mm

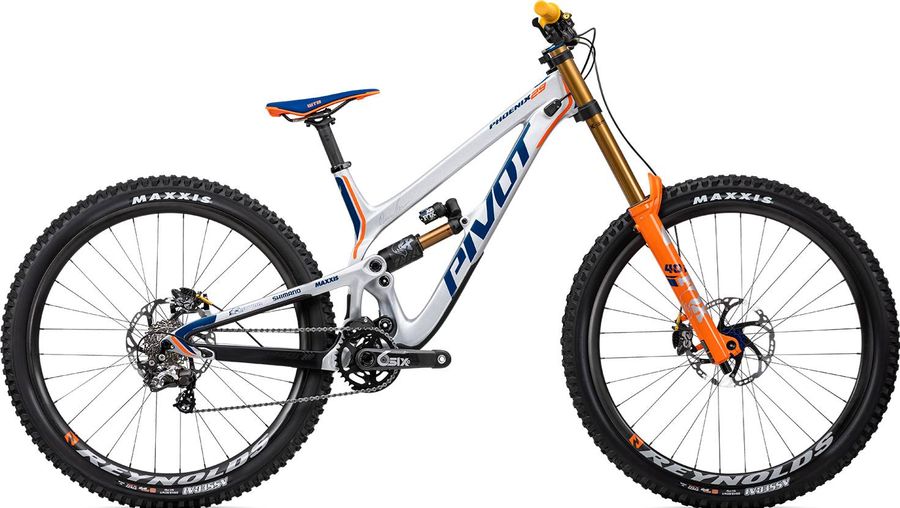

About the Pivot Phoenix 29 Race Zee w/ Factory Fork 2021
The Pivot Phoenix 29 Race Zee w/ Factory Fork 2021 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Zee drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Grip
|
Phoenix Team Padloc
|
---|
Steam
|
Phoenix Team DH - 45mm
|
---|---|
Saddle
|
Phoenix WTB Race High Tail
|
Headset
|
Pivot Precision Sealed Cartridge - DH
|
Seatpost
|
Phoenix Race Aluminum
|
Handlebar
|
Phoenix Race Low Rise Aluminum - 800mm
|
Discs
|
Shimano SLX 6-bolt - 203mm Shimano SLX 6-bolt - 203mm
|
Brakes
|
Shimano ZEE BR-M640
314 ** g
Hydraulic disc brake
4 piston
|
H03A Resin D03S Resin |
Crankset
|
Race Face Atlas 36t
|
---|---|
Shifter
|
Shimano Zee M640 10-Speed
|
Rear derailleur
|
Shimano Zee RD-M640-SS
275 g
SS
10s
|
28T(DH spec) |
|
Chain
|
Shimano CN-6701
267 g
|
|
|
Cassette
|
Shimano CS-5700
|
Frame
|
Phoenix 29
|
---|---|
Front suspension
|
Fox 40 Factory
|
Rear suspension
|
Fox Float X2 Factory
|
Rims
|
Sun Ringle SD37 - 29"
|
---|---|
Tires
|
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
|
Geometry
Size | SM | MD | LG | XL |
---|---|---|---|---|
a
Seat tube length
|
432,0
|
432,0
|
432,0
|
432,0
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
c
Top tube length
|
568,0
|
588,0
|
618,0
|
643,0
|
d
Head tube length
|
106,0
|
106,0
|
106,0
|
106,0
|
e
Head tube angle
|
62,5º
|
62,5º
|
62,5º
|
62,5º
|
f
Rake
|
-
|
-
|
-
|
-
|
g
Trail
|
-
|
-
|
-
|
-
|
h
Wheelbase
|
1225,0
|
1245,0
|
1276,0
|
1,3e3
|
i
Chainstay length
|
441,0
|
441,0
|
441,0
|
441,0
|
j
Bottom bracket drop
|
37,0
|
37,0
|
37,0
|
37,0
|
k
Stack height
|
638,0
|
638,0
|
638,0
|
638,0
|
l
Reach
|
408,0
|
428,0
|
458,0
|
483,0
|
m
Standover height
|
672,0
|
672,0
|
672,0
|
672,0
|
x
Bottom bracket height
|
337,0
|
337,0
|
337,0
|
337,0
|
y
Front center
|
-
|
-
|
-
|
-
|
