Pivot Point Complete - 26" 2021
Frame material
Steel
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

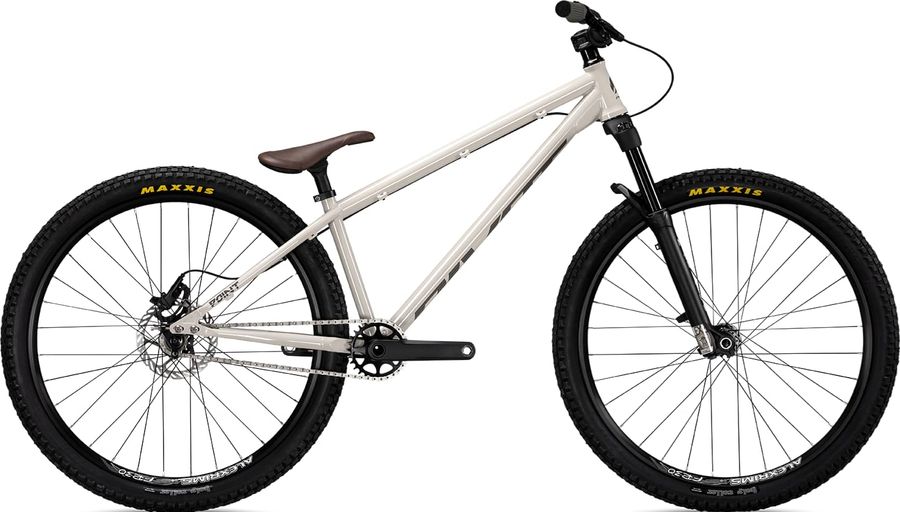

About the Pivot Point Complete - 26" 2021
The Pivot Point Complete - 26" 2021 is a Hardtail Mountain Bike with a steel frame. Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Phoenix Factory Lock-On
|
|---|
|
Steam
|
Spank Spoon - 33mm
|
|---|---|
|
Saddle
|
Phoenix DJ
|
|
Headset
|
Pivot Precision Sealed Integrated Cartridge
|
|
Seatpost
|
Phoenix DJ Direct Mount Aluminum 27.2
|
|
Handlebar
|
Spank Spoon - 785mm
|
|
Discs
|
SRAM G2 6-bolt - 160mm (rear only)
|
|
Brakes
|
SRAM Level
Hydraulic
430 g
|
|
|
|
|
Crankset
|
Two-piece crank arms with integrated 24mm axle - 28t
|
|---|---|
|
Cassette
|
Singlespeed Cog - 16t
|
|
Chain
|
KMC Z1
|
|
Frame
|
Point
|
|---|---|
|
Front suspension
|
Manitou Circus Expert
|
|
Rims
|
ALEX FR30 Double Wall Rim/Novatec S-Team Hubs - 26” 15x100 F/10x135 R
|
|---|---|
|
Tires
|
Maxxis Holy Roller 26" x 2.2"Maxxis Holy Roller 26" x 2.2"
|
Geometry
| Size | One Size |
|---|---|
|
a
Seat tube length
|
320,0
|
|
b
Seat tube angle
|
72,0º
|
|
c
Top tube length
|
610,0
|
|
d
Head tube length
|
110,0
|
|
e
Head tube angle
|
68,5º
|
|
f
Rake
|
38,0
|
|
g
Trail
|
94,0
|
|
h
Wheelbase
|
1066,0
|
|
i
Chainstay length
|
390,0
|
|
j
Bottom bracket drop
|
20,0
|
|
k
Stack height
|
556,0
|
|
l
Reach
|
431,0
|
|
m
Standover height
|
-
|
|
x
Bottom bracket height
|
325,0
|
|
y
Front center
|
677,0
|
