BikeWise

Pivot Shuttle Race GX 2021

E-Bike
MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

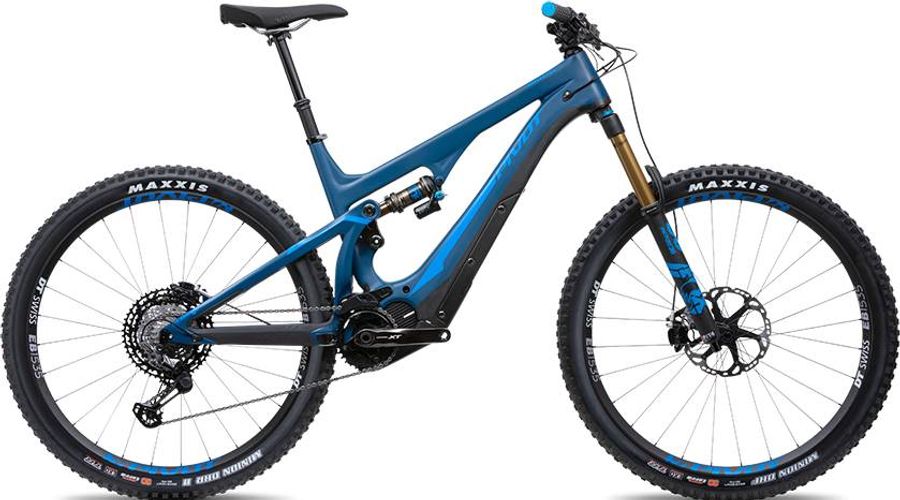

Pivot Shuttle Race GX 2021

About the Pivot Shuttle Race GX 2021

The Pivot Shuttle Race GX 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Shuttle Race GX 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Race Hightail Trail (SM), Phoenix WTB Race Vigo (MD-XL)
Headset
Pivot Precision Sealed Cartridge
Seatpost
KS Rage I 125mm (SM), KS Rage I 150mm (MD-XL)
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Discs
Shimano RT64 CenterLock - 203mm Shimano RT-EM600 CenterLock 180mm
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Chain
12 Speed E Bike Chain
Crankset
Shimano E8000 w/ SRAM Eagle EMTB 34t
Motor
Shimano Steps DU-E8000
Shifter
SRAM NX Eagle 12-Speed
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Shuttle
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Performance
Wheels
Rims
DT Swiss EB 1935, 30mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" TR, EXO+, 3CT Maxxis Minion DHR II 29" x 2.4" TR, EXO+, 3CT

Geometry

Size SM MD LG XL
a
Seat tube length
396,0
427,0
458,0
496,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
596,0
615,0
637,0
663,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
65,2º
65,2º
65,2º
65,3º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1178,0
1202,0
1226,0
1256,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
11,0
11,0
11,0
11,0
k
Stack height
603,0
612,0
621,0
631,0
l
Reach
415,0
435,0
455,0
480,0
m
Standover height
718,0
718,0
725,0
725,0
x
Bottom bracket height
363,0
363,0
363,0
363,0
y
Front center
-
-
-
-
