Pivot Shuttle Team XTR 2021

E-Bike
MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

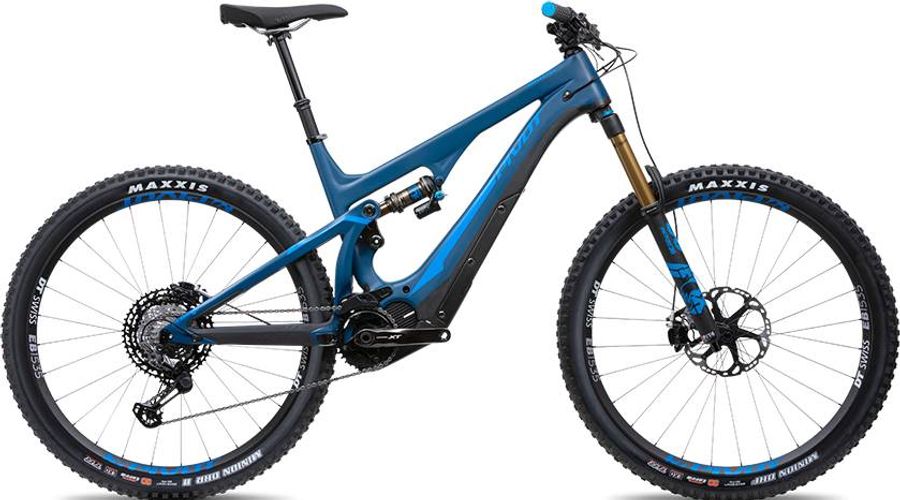

Pivot Shuttle Team XTR 2021

About the Pivot Shuttle Team XTR 2021

The Pivot Shuttle Team XTR 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Shuttle Team XTR 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Pro High Tail Trail (SM), Phoenix WTB Pro Vigo (MD-XL)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Performance Series 125mm (SM), 150mm (MD-XL)
Handlebar
Phoenix Team Low Rise Carbon
Discs
Shimano XT RT81 CenterLock - 203mm Shimano RT-EM810 CenterLock - 180mm
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
Shimano XT M8050 w/ Shimano E-MTB 34t
Motor
Shimano Steps DU-E8000
Shifter
Shimano XTR M9100 12-Speed
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Shuttle
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss EB 1535, 30mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" TR, EXO+, 3CT Maxxis Minion DHR II 29" x 2.4" TR, EXO+, 3CT

Geometry

Size SM MD LG XL
a
Seat tube length
396,0
427,0
458,0
496,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
596,0
615,0
637,0
663,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
65,2º
65,2º
65,2º
65,3º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1178,0
1202,0
1226,0
1256,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
11,0
11,0
11,0
11,0
k
Stack height
603,0
612,0
621,0
631,0
l
Reach
415,0
435,0
455,0
480,0
m
Standover height
718,0
718,0
725,0
725,0
x
Bottom bracket height
363,0
363,0
363,0
363,0
y
Front center
-
-
-
-
