Pivot Shuttle Team XTR 2022

E-Bike
MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

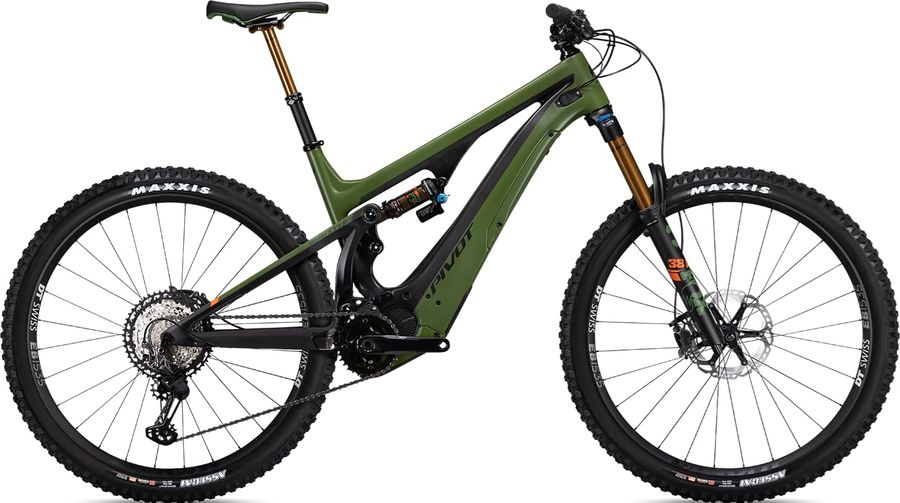

Pivot Shuttle Team XTR 2022

About the Pivot Shuttle Team XTR 2022

The Pivot Shuttle Team XTR 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Shuttle Team XTR 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Pivot Pro E-Bike
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Factory Series 125mm (SM), 150mm (MD-LG), 175mm (XL)
Handlebar
Phoenix Team Low Rise Carbon
Discs
Shimano XT MT-800 CenterLock - 203mm Shimano MTE-800 CenterLock - 180mm
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano XT M8150 w/ Shimano E-MTB 34t
Motor
Shimano Steps DU-EP800
Shifter
Shimano XTR M9100 12-Speed
Bottom bracket
BSA, 73mm, threaded
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Shuttle
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 38 Factory
Wheels
Rims
DT Swiss EB 1535, 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Assegai DHF 29" x 2.5" TR, EXO+, 3C Maxxis Minion DHRII 29" x 2.4" TR, MAXXTERRA, EXO+, 3C

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
424,0
458,0
496,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
595,0
615,0
635,0
662,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
64,3º
64,3º
64,3º
64,3º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1182,0
1209,0
1230,0
1259,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
k
Stack height
609,0
619,0
628,0
637,0
l
Reach
415,0
435,0
455,0
480,0
m
Standover height
710,0
710,0
718,0
718,0
x
Bottom bracket height
358,0
358,0
358,0
358,0
y
Front center
-
-
-
-
