Pivot Shuttle US/CAN 2018

E-Bike
MTB Trail
Groupset
Shimano XT Di2
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

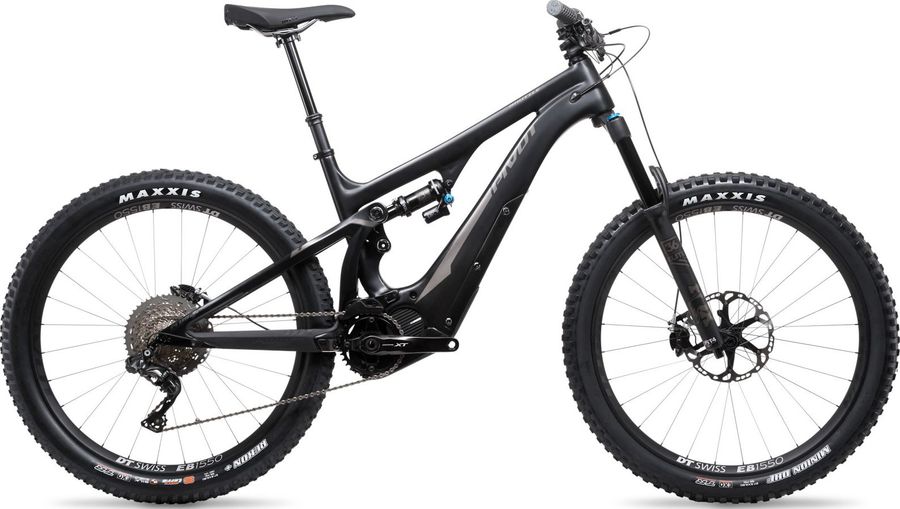

Pivot Shuttle US/CAN 2018

About the Pivot Shuttle US/CAN 2018

The Pivot Shuttle US/CAN 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Shuttle US/CAN 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro, 35mm clamp, 45mm length
Saddle
Phoenix WTB Hightail Trail Race (S), Phoenix WTB Vigo Pro (M-XL)
Battery
Shimano BT-E8010
Headset
Pivot Precision Sealed Cartridge
Seatpost
FOX Transfer, 125mm drop (S), 150mm drop (M-XL)
Handlebar
Phoenix Team Carbon, 35mm diameter, 760mm width
Brake lever
Shimano XT M8020
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Chain
11-speed
Crankset
Shimano FC-E8050 Hollowtech, 170mm length
Motor
Shimano Steps E8000
Shifter
Shimano XT Di2 11-speed (right) / Shimano Steps E8000 (left)
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Carbon Fiber
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox DPX2 Performance Elite
Wheels
Rims
DT Swiss/Pivot Custom EB1550 eMTB specific design, 40mm width
Tires
Front: Maxxis Minion DHF, 27.5+ x 2.8" TR, Rear: Maxxis Rekon 27.5+ x 2.8" TR/Silk Shield
Spokes
DT Swiss/Pivot Custom EB1550 eMTB specific design
Rear hub
DT Swiss/Pivot Custom EB1550 eMTB specific design
Front hub
DT Swiss/Pivot Custom EB1550 eMTB specific design

Geometry

Size SM MD LG XL
a
Seat tube length
393,7
425,5
457,2
495,3
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
591,6
614,2
636,8
664,3
d
Head tube length
110,0
119,9
130,0
140,0
e
Head tube angle
65,8º
65,8º
65,8º
65,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1178,1
1202,2
1226,4
1255,6
i
Chainstay length
430,6
430,6
430,6
430,6
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
596,4
605,6
614,7
623,9
l
Reach
418,6
438,7
458,8
483,7
m
Standover height
699,3
699,3
706,4
710,2
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
-
-
-
-
