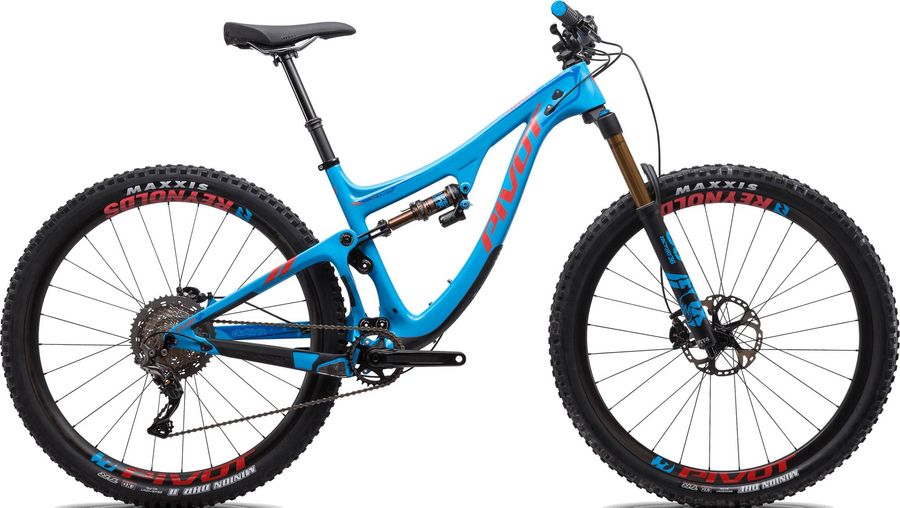

Pivot Switchblade 27.5" Plus Pro XT/XTR 12 Speed 2019

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Pivot Switchblade 27.5" Plus Pro XT/XTR 12 Speed 2019

About the Pivot Switchblade 27.5" Plus Pro XT/XTR 12 Speed 2019

The Pivot Switchblade 27.5" Plus Pro XT/XTR 12 Speed 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Switchblade 27.5" Plus Pro XT/XTR 12 Speed 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail - 55mm
Saddle
Phoenix WTB Pro Vigo
Headset
Pivot Precision Sealed Cartridge
Seatpost
KS LEV 100mm (XS), KS LEV 125mm (SM), KS Rage-i 150mm(MD, LG), Fox Transfer 150mm (XL)
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Discs
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Race Face Aeffect 32t
Shifter
Shimano XT M8100 12-Speed
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Rear derailleur
Shimano XTR RD-M9100-GS 237 g GS 12s
Average weight (g)
237
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M9100-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
35T
Frameset
Frame
Switchblade Carbon
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub, 40mm - 27.5"+

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
406,0
426,0
457,0
495,0
b
Seat tube angle
74,75º
74,5º
74,25º
74,25º
74,25º
c
Top tube length
557,0
584,0
617,0
637,0
662,0
d
Head tube length
85,0
90,0
102,0
108,0
120,0
e
Head tube angle
67,25º
67,25º
67,25º
67,25º
67,25º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1113,0
1135,0
1169,0
1192,0
1222,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
602,0
607,0
617,0
622,0
632,0
l
Reach
392,0
412,0
442,0
462,0
487,0
m
Standover height
685,0
707,0
711,0
713,0
734,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
-
-
-
-
-
