Pivot Switchblade 27.5" Plus Race XT 2019

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm

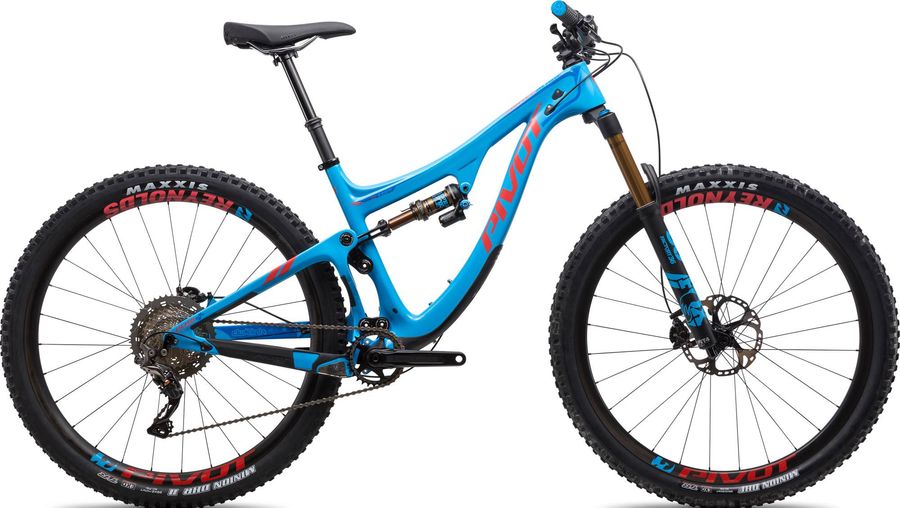

Pivot Switchblade 27.5" Plus Race XT 2019

About the Pivot Switchblade 27.5" Plus Race XT 2019

The Pivot Switchblade 27.5" Plus Race XT 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Switchblade 27.5" Plus Race XT 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail - 55mm
Saddle
Phoenix WTB Race Vigo
Headset
Pivot Semi-Sealed Cartridge
Seatpost
KS LEV 100mm (XS), KS LEV 125mm (SM), KS Rage-i 150mm(MD, LG), Fox Transfer 150mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 750mm
Discs
Shimano SLX 6-bolt - 180mmShimano SLX 6-bolt - 180mm
Brakes
Shimano SLX BR-M7000
Drivetrain
Crankset
Race Face Ride 30t
Shifter
Shimano SLX M7000 11-Speed
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Switchblade Carbon
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 36 Performance
Wheels
Rims
SUNringlé Düroc 40 w/ SUNringlé SRC hub, 40mm - 27.5"+
Tires
Maxxis Rekon 27.5"+ x 2.8" TR, 3C, EXO, MAXXTERRA, SilkShieldMaxxis Rekon 27.5"+ x 2.8" TR, 3C, EXO, MAXXTERRA, SilkShield

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,0
406,0
426,0
457,0
495,0
b
Seat tube angle
74,75º
74,5º
74,25º
74,25º
74,25º
c
Top tube length
557,0
584,0
617,0
637,0
662,0
d
Head tube length
85,0
90,0
102,0
108,0
120,0
e
Head tube angle
67,25º
67,25º
67,25º
67,25º
67,25º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1113,0
1135,0
1169,0
1192,0
1222,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
602,0
607,0
617,0
622,0
632,0
l
Reach
392,0
412,0
442,0
462,0
487,0
m
Standover height
685,0
707,0
711,0
713,0
734,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
-
-
-
-
-
