Pivot Switchblade Pro X01 w/ Fox Live Valve w/ Carbon Wheels 2021

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
142mm

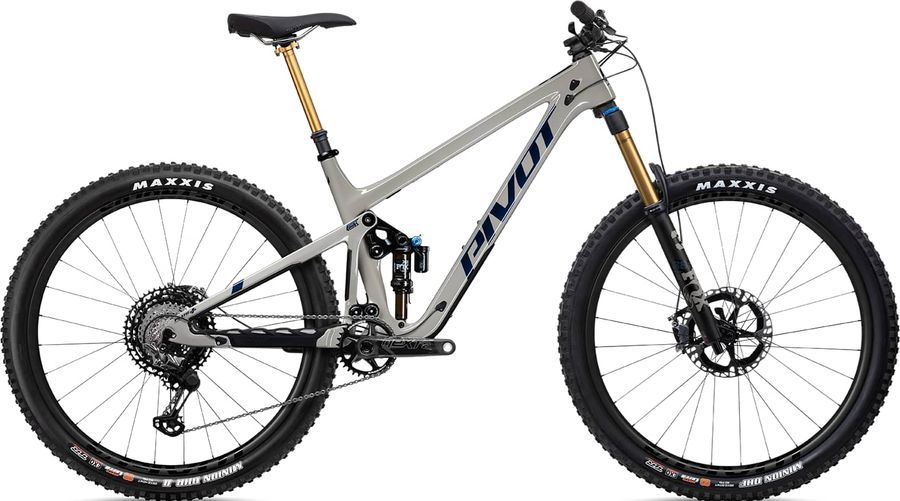

Pivot Switchblade Pro X01 w/ Fox Live Valve w/ Carbon Wheels 2021

About the Pivot Switchblade Pro X01 w/ Fox Live Valve w/ Carbon Wheels 2021

The Pivot Switchblade Pro X01 w/ Fox Live Valve w/ Carbon Wheels 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Switchblade Pro X01 w/ Fox Live Valve w/ Carbon Wheels 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Pro Vigo (MD-XL)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Factory Transfer 125mm (XS), 150mm (SM), 175mm (MD-XL)
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM-LG), 800mm (XL)
Discs
SRAM Centerline CenterLock - 200mmSRAM Centerline CenterLock - 180mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X01 Eagle DUB 32t
Shifter
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Switchblade
Rear suspension
Fox Float Factory
Front suspension
Fox 36 Factory
Wheels
Rims
DT Swiss XMC1501 w/ DT Swiss 240 hub EXP 36t Star Ratchet 30mm - 29"15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
343,0
343,0
368,0
368,0
394,0
394,0
432,0
432,0
470,0
470,0
b
Seat tube angle
76,0º
75,5º
76,0º
75,5º
76,0º
75,5º
76,0º
75,5º
76,0º
75,5º
c
Top tube length
562,0
563,0
584,0
586,0
613,0
614,0
630,0
632,0
654,0
655,0
d
Head tube length
85,0
85,0
90,0
90,0
102,0
102,0
108,0
108,0
120,0
120,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1140,0
1141,0
1162,0
1163,0
1186,0
1187,0
1209,0
1210,0
1234,0
1235,0
i
Chainstay length
424,0
425,0
424,0
425,0
424,0
425,0
424,0
425,0
424,0
425,0
j
Bottom bracket drop
22,0
28,0
22,0
28,0
22,0
28,0
22,0
28,0
22,0
28,0
k
Stack height
600,0
604,0
605,0
608,0
615,0
619,0
621,0
624,0
632,0
635,0
l
Reach
409,0
404,0
429,0
424,0
454,0
449,0
469,0
464,0
489,0
484,0
m
Standover height
648,0
642,0
667,0
662,0
693,0
688,0
695,0
690,0
700,0
694,0
x
Bottom bracket height
352,0
346,0
352,0
346,0
352,0
346,0
352,0
346,0
352,0
346,0
y
Front center
-
-
-
-
-
-
-
-
-
-
