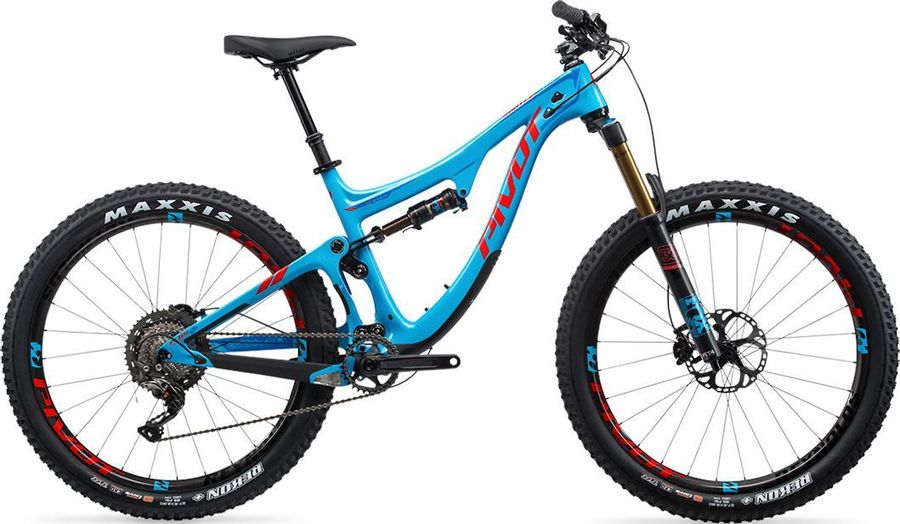

Pivot Switchblade TEAM XTR 2x 27.5+ 2018

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm
Pivot Switchblade TEAM XTR 2x 27.5+ 2018

About the Pivot Switchblade TEAM XTR 2x 27.5+ 2018

The Pivot Switchblade TEAM XTR 2x 27.5+ 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Switchblade TEAM XTR 2x 27.5+ 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Saddle
WTB Hightail (XS-S), WTB Vigo Team (M-XL)
Headset
Pivot Precision Sealed Bearing
Seatpost
FOX Transfer (LEV Integra for XS-S)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Brake lever
Shimano XTR M9020
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Chain
Shimano, 11-speed
Crankset
Race Face Next SL
Shifter
Shimano XTR, 11-speed
Bottom bracket
PF92
Front derailleur
Shimano XTR, side swing
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS Factory Kashima
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Blacklabel 27.5+, 40mm inner width
Tires
Maxxis Rekon, 2.8" TR 3C EXO MaxxTerra
Spokes
Reynolds Blacklabel
Rear hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Front hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,3
406,4
425,5
457,2
495,3
b
Seat tube angle
74,0º
73,75º
73,5º
73,5º
73,5º
c
Top tube length
557,3
584,0
617,0
637,3
662,7
d
Head tube length
85,1
89,9
101,6
107,9
119,9
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1117,9
1139,7
1174,3
1196,6
1226,3
i
Chainstay length
430,3
430,3
430,3
430,3
430,3
j
Bottom bracket drop
18,0
18,0
18,0
18,0
18,0
k
Stack height
607,6
612,4
623,6
629,7
640,9
l
Reach
382,3
402,4
432,3
452,4
477,3
m
Standover height
683,0
704,6
710,2
711,0
734,3
x
Bottom bracket height
337,1
337,1
337,1
337,1
337,1
y
Front center
-
-
-
-
-
