Pivot Switchblade TEAM XTR Di2 1x 29 2018

MTB Trail
Groupset
Shimano XTR Di2
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm

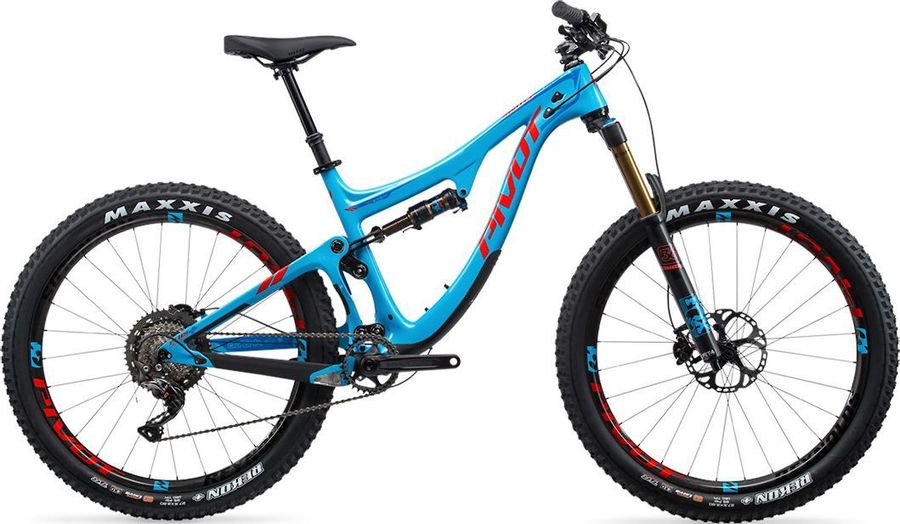

Pivot Switchblade TEAM XTR Di2 1x 29 2018

About the Pivot Switchblade TEAM XTR Di2 1x 29 2018

The Pivot Switchblade TEAM XTR Di2 1x 29 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Switchblade TEAM XTR Di2 1x 29 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Pedals
None included
Components
Steam
Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Saddle
WTB Hightail (XS-S), WTB Vigo Team (M-XL)
Headset
Pivot Precision Sealed Cartridge
Seatpost
FOX Transfer (LEV Integra for XS-S)
Handlebar
Phoenix Team, carbon, 35mm diameter, 760mm width
Brake lever
Shimano XTR M9020
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Chain
Shimano, 11-speed
Crankset
Race Face Next SL
Shifter
Shimano XTR Di2, 11-speed
Bottom bracket
PF92
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS Factory Kashima
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds Blacklabel Enduro 29, 28mm inner width
Tires
Front: Maxxis Minion DHF, 2.5” TR 3C EXO MaxxTerra, Rear: Maxxis Minion DHR II, 2.4” TR 3C EXO MaxxTerra
Spokes
Reynolds Blacklabel
Rear hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Front hub
Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
368,3
406,4
425,5
457,2
495,3
b
Seat tube angle
74,75º
74,5º
74,25º
74,25º
74,25º
c
Top tube length
557,3
584,0
617,0
637,3
662,7
d
Head tube length
85,1
89,9
101,6
107,9
119,9
e
Head tube angle
67,25º
67,25º
67,25º
67,25º
67,25º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1113,5
1135,4
1169,7
1192,3
1222,0
i
Chainstay length
430,3
430,3
430,3
430,3
430,3
j
Bottom bracket drop
35,0
35,0
35,0
35,0
35,0
k
Stack height
602,2
607,3
617,2
622,3
632,2
l
Reach
392,2
412,3
442,2
462,3
487,2
m
Standover height
685,6
707,1
711,0
713,5
733,8
x
Bottom bracket height
339,9
339,9
339,9
339,9
339,9
y
Front center
-
-
-
-
-
