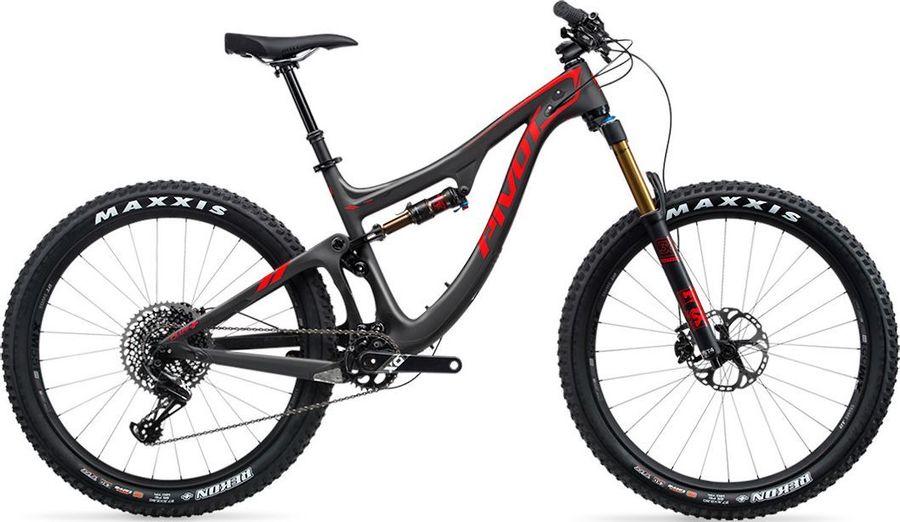

Pivot Switchblade TEAM XX1 Eagle 29 2018

MTB Trail

Groupset

SRAM XX1 Eagle

Frame material

Carbon

Wheel size

29"

Suspension type

Full suspension

Front travel

150mm

Rear travel

135mm

About the Pivot Switchblade TEAM XX1 Eagle 29 2018

The Pivot Switchblade TEAM XX1 Eagle 29 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Switchblade TEAM XX1 Eagle 29 2018 has 3 features listed below.

Dropper seatpost More info

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Phoenix Team Padloc
Pedals	None included

Components
Steam	Phoenix Team Enduro, 35mm clamp, 35mm length (XS), 45mm length (S), 55mm length (M-XL)
Saddle	WTB Hightail (XS-S), WTB Vigo Team (M-XL)
Headset	Pivot Precision Sealed Bearing
Seatpost	FOX Transfer (LEV Integra for XS-S)
Handlebar	Phoenix Team, carbon, 35mm diameter, 760mm width
Brake lever	SRAM Guide Ultimate
Brakes	SRAM Guide Ultimate Hydraulic 360 g
Application MTB Blade material Carbon Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Arctic Grey Anodized, Black Anodized Model DB-GDE-ULT-A1 Name Guide Ultimate Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts) Weight 360

Drivetrain
Chain	SRAM Eagle, 12-speed
Crankset	SRAM XX1 Eagle with One Up SB+ Switch Spider
Shifter	SRAM XX1 Eagle, 12-speed
Bottom bracket	PF92
Cassette	SRAM XX1 XG1299 Eagle
Rear derailleur	SRAM XX1 Eagle 12s
Cable pull ratio X-actuation Color Black, Lunar Max tooth 52 Model RD-XX-1-B2 Name XX1 Eagle Rear Derailleur Speed 12s

Frameset
Frame	Carbon Fiber
Rear suspension	Fox Float DPS Factory Kashima
Front suspension	Fox 36 Factory

Wheels
Rims	Reynolds Blacklabel Enduro 29, 28mm inner width
Tires	Front: Maxxis Minion DHF, 2.5” TR 3C EXO MaxxTerra, Rear: Maxxis Minion DHR II, 2.4” TR 3C EXO MaxxTerra
Spokes	Reynolds Blacklabel
Rear hub	Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm
Front hub	Industry Nine, Front: Boost, 15mm x 110mm, Rear: Super Boost Plus, 12mm x 157mm

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XX1 Eagle 1 × 12

Crank: 32T

Cassette: 10-50T

Speeds: 12s

Gearing

Average

0,65

Average

3,21

Compared to similar bikes, the Pivot Switchblade TEAM XX1 Eagle 29 2018 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	XS	SM	MD	LG	XL
a Seat tube length	368,3	406,4	425,5	457,2	495,3
b Seat tube angle	74,75º	74,5º	74,25º	74,25º	74,25º
c Top tube length	557,3	584,0	617,0	637,3	662,7
d Head tube length	85,1	89,9	101,6	107,9	119,9
e Head tube angle	67,25º	67,25º	67,25º	67,25º	67,25º
f Rake	-	-	-	-	-
g Trail	-	-	-	-	-
h Wheelbase	1113,5	1135,4	1169,7	1192,3	1222,0
i Chainstay length	430,3	430,3	430,3	430,3	430,3
j Bottom bracket drop	35,0	35,0	35,0	35,0	35,0
k Stack height	602,2	607,3	617,2	622,3	632,2
l Reach	392,2	412,3	442,2	462,3	487,2
m Standover height	685,6	707,1	711,0	713,5	733,8
x Bottom bracket height	339,9	339,9	339,9	339,9	339,9
y Front center	-	-	-	-	-
