BikeWise

Pivot Trail 429 27.5" Plus Pro XT/XTR 2019

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

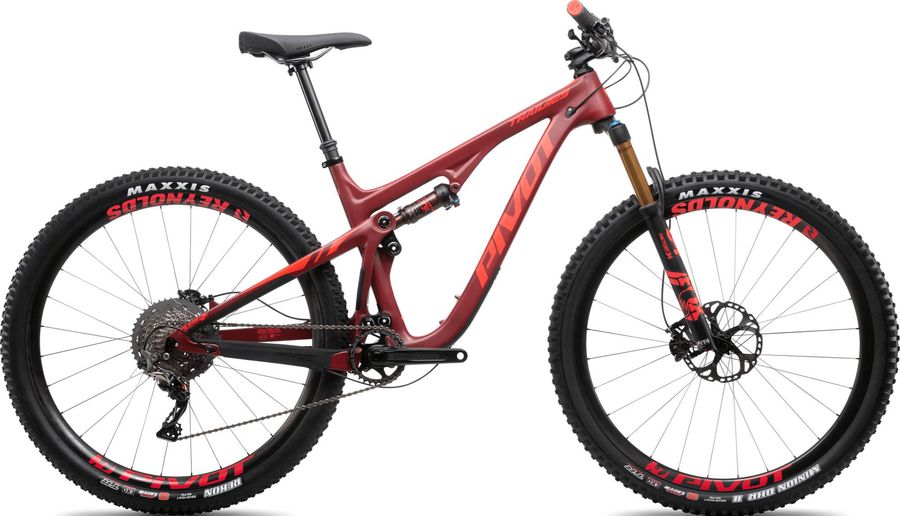

Pivot Trail 429 27.5" Plus Pro XT/XTR 2019

About the Pivot Trail 429 27.5" Plus Pro XT/XTR 2019

The Pivot Trail 429 27.5" Plus Pro XT/XTR 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Pivot Trail 429 27.5" Plus Pro XT/XTR 2019 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Team Padloc
Components
Steam
Phoenix Team Enduro/Trail - 55mm
Saddle
Phoenix WTB Pro Vigo
Headset
Pivot Precision Sealed Cartridge
Seatpost
KS LEV 125mm (XS), Fox Transfer 125mm (SM), Fox Transfer 150mm (MD-XL)
Handlebar
Phoenix Team Low Rise Carbon - 760mm
Discs
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Race Face Aeffect SL 30t
Shifter
Shimano XT M8000 11-Speed
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Trail 429
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub, 40mm - 27.5"+
Tires
Maxxis Rekon 27.5"+ x 2.8" TR, 3C, EXO, MAXXTERRA, SilkShieldMaxxis Rekon 27.5"+ x 2.8" TR, 3C, EXO, MAXXTERRA, SilkShield

Geometry

Size XS SM MD LG XL
a
Seat tube length
359,0
397,0
428,0
460,0
497,0
b
Seat tube angle
75,4º
74,6º
74,6º
74,6º
74,6º
c
Top tube length
544,0
575,0
608,0
631,0
653,0
d
Head tube length
84,0
89,0
102,0
109,0
119,0
e
Head tube angle
67,0º
67,3º
67,3º
67,3º
67,3º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1103,0
1123,0
1156,0
1179,0
1205,0
i
Chainstay length
422,0
422,0
422,0
422,0
422,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
12,0
k
Stack height
576,0
583,0
594,0
599,0
610,0
l
Reach
384,0
402,0
432,0
453,0
473,0
m
Standover height
681,0
694,0
697,0
699,0
722,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
343,0
y
Front center
-
-
-
-
-
