Pivot Trail 429 Race X01 2022

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

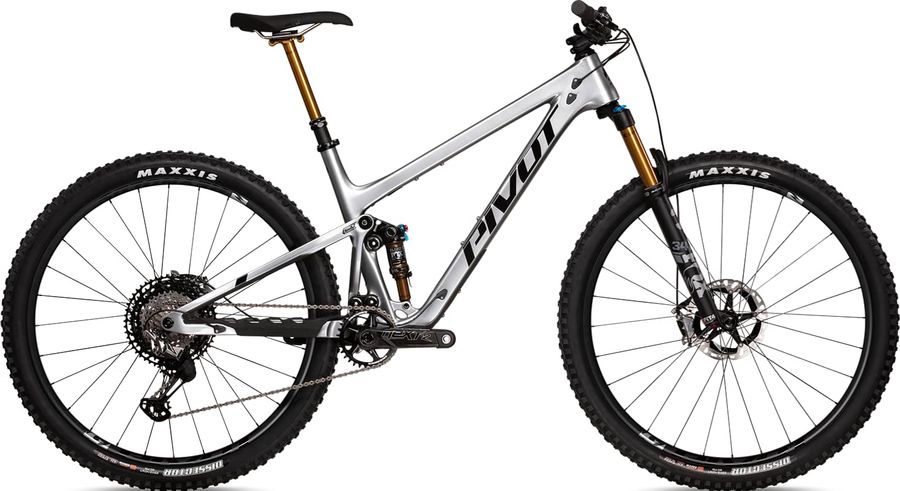

Pivot Trail 429 Race X01 2022

About the Pivot Trail 429 Race X01 2022

The Pivot Trail 429 Race X01 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Trail 429 Race X01 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Volt Race (Medium Width)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Performance Elite 125mm (XS), 125mm (SM), 150mm (MD) 175mm (LG), 200mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Discs
SRAM Centerline 6-bolt - 180mmSRAM Centerline 6-bolt - 180mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM Descendant 7k Eagle DUB 32t
Shifter
SRAM GX Eagle 12-Speed
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Trail 429
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA

Geometry

Size XS Low XS Low SM Low SM Low MD Low MD Low LG Low LG Low XL Low XL Low
a
Seat tube length
343,0
343,0
368,0
368,0
394,0
394,0
432,0
432,0
470,0
470,0
b
Seat tube angle
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
c
Top tube length
566,0
567,0
589,0
590,0
622,0
623,0
638,0
639,0
661,0
663,0
d
Head tube length
85,0
85,0
95,0
95,0
107,0
107,0
112,0
112,0
125,0
125,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
43,0
42,0
43,0
42,0
43,0
42,0
43,0
42,0
43,0
42,0
g
Trail
116,0
121,0
116,0
121,0
116,0
121,0
116,0
121,0
116,0
121,0
h
Wheelbase
1122,0
1123,0
1146,0
1147,0
1181,0
1182,0
1198,0
1199,0
1223,0
1224,0
i
Chainstay length
424,0
426,0
424,0
426,0
424,0
426,0
424,0
426,0
424,0
426,0
j
Bottom bracket drop
27,0
33,0
27,0
33,0
27,0
33,0
27,0
33,0
27,0
33,0
k
Stack height
578,0
582,0
587,0
591,0
598,0
602,0
603,0
607,0
615,0
619,0
l
Reach
404,0
399,0
424,0
419,0
454,0
449,0
469,0
464,0
489,0
484,0
m
Standover height
630,0
625,0
662,0
656,0
664,0
658,0
676,0
671,0
690,0
684,0
x
Bottom bracket height
347,0
340,0
347,0
340,0
347,0
340,0
347,0
340,0
347,0
340,0
y
Front center
699,0
699,0
723,0
723,0
758,0
758,0
775,0
775,0
800,0
800,0
