Pivot Trail 429 Race XT 2022

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

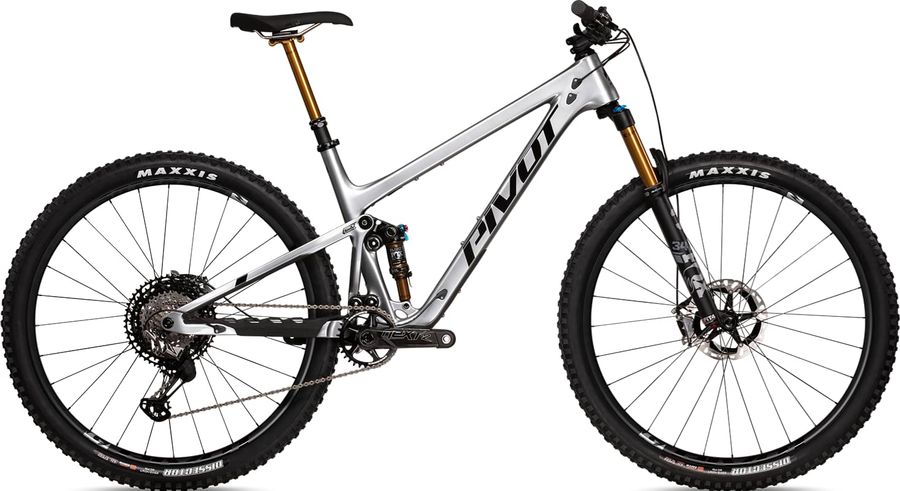

Pivot Trail 429 Race XT 2022

About the Pivot Trail 429 Race XT 2022

The Pivot Trail 429 Race XT 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Trail 429 Race XT 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Volt Race (Medium Width)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Fox Transfer Performance Elite 125mm (XS), 125mm (SM), 150mm (MD) 175mm (LG), 200mm (XL)
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Discs
Shimano SLX 6-bolt - 180mmShimano SLX 6-bolt - 180mm
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Ride 32t
Shifter
Shimano SLX M7100 ISPEC EV 12-Speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Trail 429
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA

Geometry

Size XS Low XS Low SM Low SM Low MD Low MD Low LG Low LG Low XL Low XL Low
a
Seat tube length
343,0
343,0
368,0
368,0
394,0
394,0
432,0
432,0
470,0
470,0
b
Seat tube angle
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
c
Top tube length
566,0
567,0
589,0
590,0
622,0
623,0
638,0
639,0
661,0
663,0
d
Head tube length
85,0
85,0
95,0
95,0
107,0
107,0
112,0
112,0
125,0
125,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
43,0
42,0
43,0
42,0
43,0
42,0
43,0
42,0
43,0
42,0
g
Trail
116,0
121,0
116,0
121,0
116,0
121,0
116,0
121,0
116,0
121,0
h
Wheelbase
1122,0
1123,0
1146,0
1147,0
1181,0
1182,0
1198,0
1199,0
1223,0
1224,0
i
Chainstay length
424,0
426,0
424,0
426,0
424,0
426,0
424,0
426,0
424,0
426,0
j
Bottom bracket drop
27,0
33,0
27,0
33,0
27,0
33,0
27,0
33,0
27,0
33,0
k
Stack height
578,0
582,0
587,0
591,0
598,0
602,0
603,0
607,0
615,0
619,0
l
Reach
404,0
399,0
424,0
419,0
454,0
449,0
469,0
464,0
489,0
484,0
m
Standover height
630,0
625,0
662,0
656,0
664,0
658,0
676,0
671,0
690,0
684,0
x
Bottom bracket height
347,0
340,0
347,0
340,0
347,0
340,0
347,0
340,0
347,0
340,0
y
Front center
699,0
699,0
723,0
723,0
758,0
758,0
775,0
775,0
800,0
800,0
