Pivot Trail 429 Team XX1 AXS 2022

MTB Trail
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

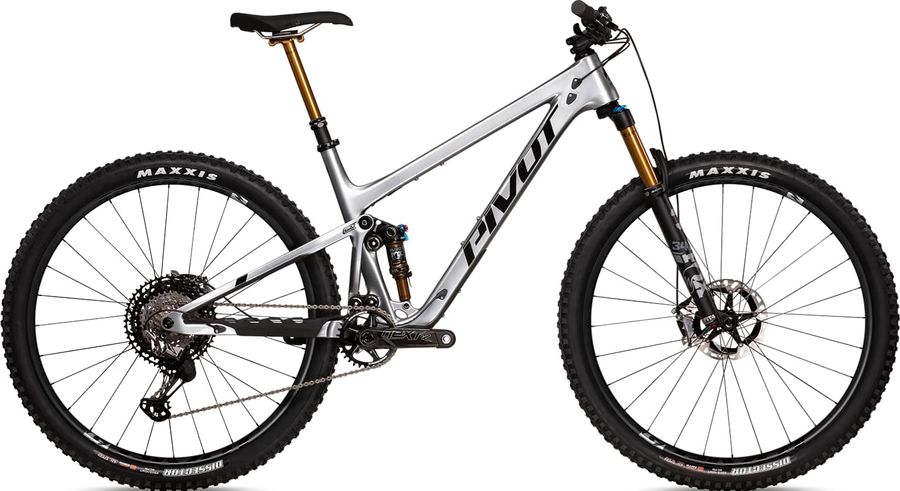

Pivot Trail 429 Team XX1 AXS 2022

About the Pivot Trail 429 Team XX1 AXS 2022

The Pivot Trail 429 Team XX1 AXS 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Pivot Trail 429 Team XX1 AXS 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Phoenix Factory Lock-On
Components
Steam
Phoenix Team Enduro/Trail
Saddle
Phoenix WTB Volt Team (Medium Width)
Headset
Pivot Precision Sealed Cartridge
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-LG) 170mm (XL)
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Discs
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Brakes
SRAM G2 Ultimate Hydraulic 238 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized w/Rainbow Hardware, Gloss Black, Gloss Black w/Rainbow Hardware, Lunar Grey
Model
DB-G2-ULT-A1
Name
G2 Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
238
Drivetrain
Crankset
SRAM XX1 Eagle DUB SL 32t
Shifter
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Trail 429
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
Reynolds Blacklabel 309/289 w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA

Geometry

Size XS Low XS Low SM Low SM Low MD Low MD Low LG Low LG Low XL Low XL Low
a
Seat tube length
343,0
343,0
368,0
368,0
394,0
394,0
432,0
432,0
470,0
470,0
b
Seat tube angle
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
c
Top tube length
566,0
567,0
589,0
590,0
622,0
623,0
638,0
639,0
661,0
663,0
d
Head tube length
85,0
85,0
95,0
95,0
107,0
107,0
112,0
112,0
125,0
125,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
43,0
42,0
43,0
42,0
43,0
42,0
43,0
42,0
43,0
42,0
g
Trail
116,0
121,0
116,0
121,0
116,0
121,0
116,0
121,0
116,0
121,0
h
Wheelbase
1122,0
1123,0
1146,0
1147,0
1181,0
1182,0
1198,0
1199,0
1223,0
1224,0
i
Chainstay length
424,0
426,0
424,0
426,0
424,0
426,0
424,0
426,0
424,0
426,0
j
Bottom bracket drop
27,0
33,0
27,0
33,0
27,0
33,0
27,0
33,0
27,0
33,0
k
Stack height
578,0
582,0
587,0
591,0
598,0
602,0
603,0
607,0
615,0
619,0
l
Reach
404,0
399,0
424,0
419,0
454,0
449,0
469,0
464,0
489,0
484,0
m
Standover height
630,0
625,0
662,0
656,0
664,0
658,0
676,0
671,0
690,0
684,0
x
Bottom bracket height
347,0
340,0
347,0
340,0
347,0
340,0
347,0
340,0
347,0
340,0
y
Front center
699,0
699,0
723,0
723,0
758,0
758,0
775,0
775,0
800,0
800,0
