Polygon CASCADE 3 2020
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

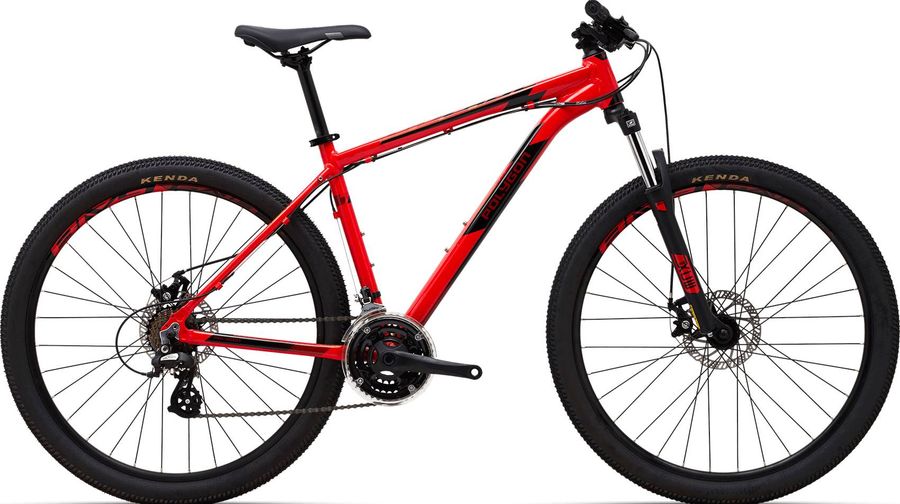

About the Polygon CASCADE 3 2020
The Polygon CASCADE 3 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Steam
|
ENTITY OE E: 45MM, BB: 31.8MM
|
|---|---|
|
Saddle
|
FOMING STEEL RAIL
|
|
Seatpost
|
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
|
|
Handlebar
|
STEEL W:680MM R:40MM BB:31.8MM
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
WHEELTOP TCSH2-CFPG 42/34/24T 170 MM
|
|---|---|
|
Shifter
|
SHIMANO ST-EF41 3X7 SPEED
|
|
Bottom bracket
|
CARTRIDGE BB
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC HV500
|
|
Cassette
|
Shimano MF-TZ500
|
|
Frame
|
ALUTECH XC SPORT 27.5"
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS
|
|---|---|
|
Tires
|
PERFORMANCE TIRE 27.5" X2.1
|
Geometry
| Size | SM | MD |
|---|---|---|
|
a
Seat tube length
|
406,0
|
456,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
|
c
Top tube length
|
571,0
|
591,0
|
|
d
Head tube length
|
100,0
|
105,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
|
f
Rake
|
42,0
|
42,0
|
|
g
Trail
|
91,0
|
91,0
|
|
h
Wheelbase
|
1071,7
|
1092,1
|
|
i
Chainstay length
|
436,0
|
436,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
|
k
Stack height
|
599,1
|
603,8
|
|
l
Reach
|
389,7
|
408,2
|
|
m
Standover height
|
713,0
|
753,0
|
|
x
Bottom bracket height
|
303,0
|
303,0
|
|
y
Front center
|
640,0
|
660,0
|
