Polygon Collosus DH8 2018

MTB Downhill

Groupset

Shimano Zee

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Front travel

200mm

Rear travel

203mm

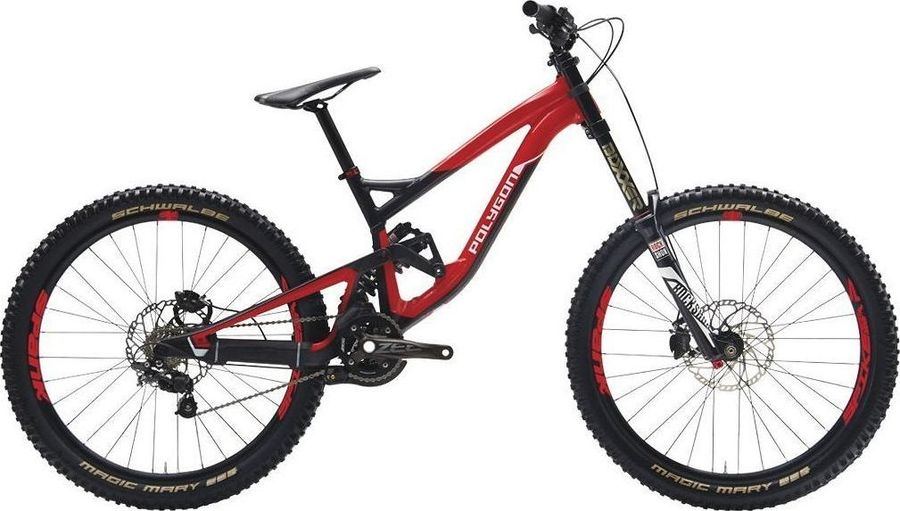

About the Polygon Collosus DH8 2018

The Polygon Collosus DH8 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Zee drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Polygon Collosus DH8 2018 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Components
Steam	Kore Torsion DM V2 M35, alloy, 30mm length
Saddle	Entity Assault, Cr-Mo rails
Headset	FSA No. 57E-1, taper ID: 44/65mm
Seatpost	Kore Aerox 3, alloy, 300mm length
Handlebar	Kore Torsion M35, alloy, 800mm width
Brake lever	Shimano Zee BL-M640
Brakes	Shimano ZEE BR-M640 314 ** g Hydraulic disc brake 4 piston
Average weight (g) 314 ** Brake hose color kit Black Brake hose color kit White Brake hose kit SM-BH90-SBS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M640 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad option H01A Resin H03A Resin Pad standard D01S Resin D03S Resin Pad standard D02S Metal Pad mount Split pin Piston 4 Piston material Ceramic

Drivetrain
Crankset	Shimano Zee FC-M645, 165mm
Shifter	Shimano Zee SL-M640
Chain guide	Yes
Bottom bracket	Shimano integraged BSA
Chain	Shimano CN-HG95 273 g
Average weight (g) 273 Chromizing treatment roller link pin Model CN-HG95 Pin link plate SIL-TEC Roller link plate SIL-TEC Type HG-X 10-speed
Rear derailleur	Shimano Zee RD-M640-SS 275 g SS 10s
Average weight (g) 275 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Cable fixing bolt material Stainless steel Compatible chain HG-X 10-speed Lower pulley max 36T(Freeride spec), 28T(DH spec) Lower pulley min 23T Model RD-M640-SS P axle material Steel Pulley bolts material Stainless steel Sunken type pulley bolt Pulley teeth 11T Pulley cage SS Speeds 10 Upper pulley max 12T Upper pulley min 11T Total capacity 25T
Cassette	Shimano CS-5700

Frameset
Frame	Aluminum
Rear suspension	RockShox Vivid R2C 468 g
Body eyelet Standard Compression tune H, L, L3, M Eye to eye stroke 200x57, 216x63, 222x70, 240x76, 267x89 Model RS-VIVC-R2C-B3 Name Vivid R2C Shaft eyelet Standard Weight based on 216x63, no coil, no hardware Weight 468
Front suspension	RockShox Boxxer Team Coil
Color Diffusion Black, Gloss Black, Gloss White fork offset 42mm, 48mm Maximum rotor size 210mm Minimum rotor size 160mm, 200mm Model FS-BXR-TEAM-A2 Name BoXXer Team Spring Coil Travel (mm) 200mm Upper tube type 35mm tapered aluminum Wheel size 26", 27.5"

Wheels
Rims	Spank Spike Race28 DH Evo
Tires	Schwalbe Magic Mary, downhill specific, 27.5" x 2.50"
Rear hub	Novatec
Front hub	Novatec

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Zee 1 × 11

Crank: 36T

Cassette: 11-25T

Speeds: 11s

Gearing

Average

1,44

Average

3,28

Compared to similar bikes, the Polygon Collosus DH8 2018 has a regular uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM High	SM Low	MD High	MD Low	LG High	LG Low	XL High	XL Low	XXL High	XXL Low
a Seat tube length	383,0	383,0	383,0	383,0	383,0	383,0	383,0	383,0	383,0	383,0
b Seat tube angle	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º
c Top tube length	538,9	538,9	559,0	559,0	586,8	586,8	608,9	608,9	634,0	634,0
d Head tube length	110,0	110,0	110,0	110,0	110,0	110,0	110,0	110,0	110,0	110,0
e Head tube angle	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º
f Rake	-	-	-	-	-	-	-	-	-	-
g Trail	-	-	-	-	-	-	-	-	-	-
h Wheelbase	-	-	-	-	-	-	-	-	-	-
i Chainstay length	-	-	-	-	-	-	-	-	-	-
j Bottom bracket drop	2,0	2,0	2,0	2,0	2,0	2,0	2,0	2,0	2,0	2,0
k Stack height	599,0	599,0	599,2	599,2	599,5	599,5	599,6	599,6	599,9	599,9
l Reach	371,5	371,5	391,6	391,6	419,5	419,5	441,6	441,6	466,8	466,8
m Standover height	671,9	671,9	671,0	671,0	669,8	669,8	668,4	668,4	668,6	668,6
x Bottom bracket height	353,7	353,7	353,6	353,6	353,5	353,5	353,3	353,3	353,2	353,2
y Front center	-	-	-	-	-	-	-	-	-	-
