Polygon Collosus DH9 2018

MTB Downhill

Groupset

Shimano Saint

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Front travel

200mm

Rear travel

200mm

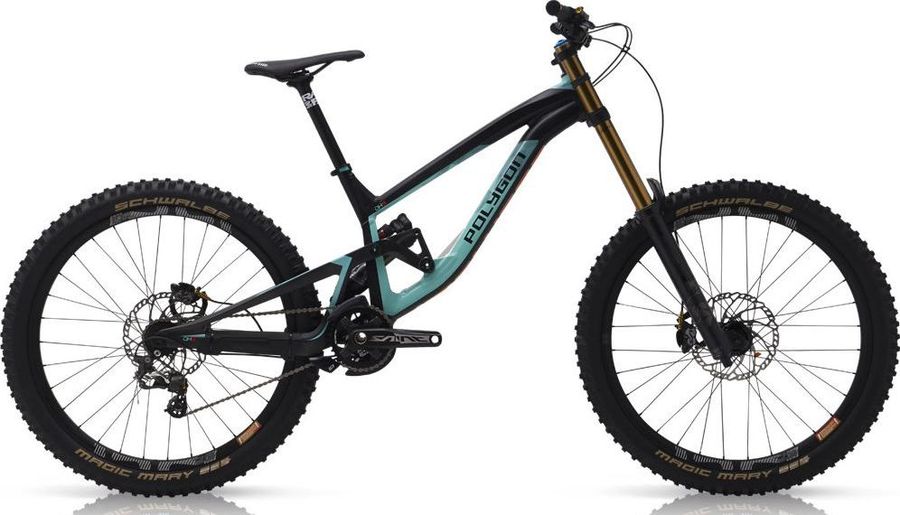

About the Polygon Collosus DH9 2018

The Polygon Collosus DH9 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Saint drivetrain. Its features include hydraulic disc brakes.

Features

The Polygon Collosus DH9 2018 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Components
Steam	Race Face Atlas DM 35, 50mm length
Saddle	Race Face Atlas, railed
Headset	FSA No. 57E-1
Seatpost	Race Face Chester
Handlebar	Race Face Atlas 35, 800mm width, 35mm rise
Brake lever	Shimano Saint BL-M820
Brakes	Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g) 438 (BL-M820) Brake hose color kit Black Brake hose color kit White Brake hose kit SM-BH90-SBLS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Series color Hose joint Banjo ICE TECHNOLOGIES pad compatible caliper J-Kit spec for OEM Model BR-M820 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard H01A Resin H03A Resin Pad standard H03C Metal Pad mount Pad axle Piston 4 Piston material Ceramic Recommended disc brake rotor SM-RT99 SM-RT86

Drivetrain
Crankset	Race Face Atlas, 165mm
Shifter	Shimano Saint SL-M820
Chain guide	Yes
Bottom bracket	Race Face BSA, 83mm
Chain	Shimano CN-HG95 273 g
Average weight (g) 273 Chromizing treatment roller link pin Model CN-HG95 Pin link plate SIL-TEC Roller link plate SIL-TEC Type HG-X 10-speed
Rear derailleur	Shimano RD-M820-SS 280 (w/o mode converter) g SS 10s
Average weight (g) 280 (w/o mode converter) B axle finish Anodized B axle hollow B axle material Aluminum Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 28/36T Lower pulley min 23T Model RD-M820-SS P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage SS Speeds 10 Upper pulley max 12T Upper pulley min 11T Total capacity 25T
Cassette	Shimano CS-5700

Frameset
Frame	Aluminum
Front suspension	Fox 40 Float Factory
Rear suspension	Fox Float X2 Factory

Wheels
Rims	e*thirteen LG1+
Tires	Schwalbe Magic Mary, 27.5" x 2.50"
Rear hub	e*thirteen LG1+
Front hub	e*thirteen LG1+

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Saint

Report incorrect information

Geometry

Size	SM High	SM Low	MD High	MD Low	LG High	LG Low	XL High	XL Low
a Seat tube length	383,0	383,0	383,0	383,0	383,0	383,0	383,0	383,0
b Seat tube angle	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º	62,2º
c Top tube length	559,0	559,0	586,8	586,8	608,9	608,9	634,0	634,0
d Head tube length	110,0	110,0	110,0	110,0	110,0	110,0	110,0	110,0
e Head tube angle	62,2º	62,2º	62,3º	62,3º	62,3º	62,3º	62,3º	62,3º
f Rake	-	-	-	-	-	-	-	-
g Trail	-	-	-	-	-	-	-	-
h Wheelbase	-	-	-	-	-	-	-	-
i Chainstay length	-	-	-	-	-	-	-	-
j Bottom bracket drop	2,0	2,0	2,0	2,0	2,0	2,0	2,0	2,0
k Stack height	599,2	599,2	599,5	599,5	599,6	599,6	599,9	599,9
l Reach	391,6	391,6	419,5	419,5	441,6	441,6	466,8	466,8
m Standover height	671,0	671,0	669,8	669,8	668,4	668,4	668,6	668,6
x Bottom bracket height	353,6	353,6	353,5	353,5	353,3	353,3	353,2	353,2
y Front center	-	-	-	-	-	-	-	-
