Polygon COLLOSUS DH9 2020

MTB Downhill
Groupset
Shimano Saint
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

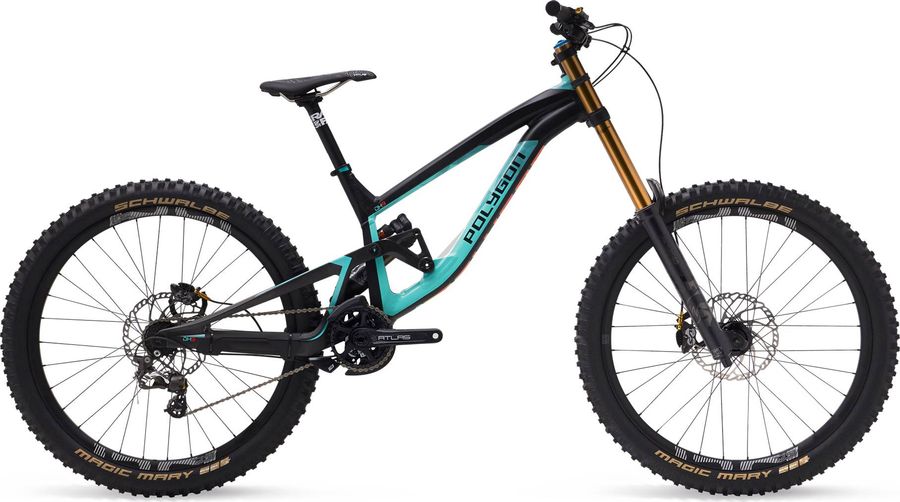

Polygon COLLOSUS DH9 2020

About the Polygon COLLOSUS DH9 2020

The Polygon COLLOSUS DH9 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a Shimano Saint drivetrain. Its features include hydraulic disc brakes.

Features

The Polygon COLLOSUS DH9 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
RACE FACE ATLAS DM 35, E:50MM
Saddle
RACE FACE ATLAS RAILED
Seatpost
RACE FACE CHESTER, 30.9MM
Handlebar
RACE FACE ATLAS 35, W:800MM R:35MM
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
RACE FACE ATLAS 36T, 165MM
Shifter
SHIMANO SAINT SL-M820
Bottom bracket
RACE FACE BSA FOR 83MM BB SHELL
Chain
Shimano CN-HG95 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG95
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X 10-speed
Rear derailleur
Shimano RD-M820-SS 280 (w/o mode converter) g SS 10s
Average weight (g)
280 (w/o mode converter)
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
28/36T
Lower pulley min
23T
Model
RD-M820-SS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SS
Speeds
10
Upper pulley max
12T
Upper pulley min
11T
Total capacity
25T
Cassette
Shimano CS-5700
Frameset
Frame
ALX FRONT & ACX REAR DOWNHILL FRAME, 200MM TRAVEL, 157MM O.L.D.
Front suspension
Fox 40 Float Factory
Rear suspension
Fox Float X2 Factory
Wheels
Rims
E13 LG1+
Tires
SCHWALBE MAGIC MARY 27.5”X2.50”

Geometry

Size SM High SM Low MD High MD Low LG High XL High LG Low XL Low
a
Seat tube length
383,0
383,0
383,0
383,0
383,0
383,0
383,0
383,0
b
Seat tube angle
75,5º
75,4º
75,5º
75,4º
75,5º
75,5º
75,4º
75,4º
c
Top tube length
554,8
559,0
582,5
586,8
604,5
604,5
608,9
634,0
d
Head tube length
110,0
110,0
110,0
110,0
110,0
110,0
110,0
110,0
e
Head tube angle
63,0º
62,2º
63,0º
62,3º
63,0º
63,0º
62,3º
62,3º
f
Rake
57,0
52,0
57,0
53,0
57,0
57,0
52,0
12,0
g
Trail
117,0
129,0
117,0
127,0
117,0
117,0
128,0
173,0
h
Wheelbase
1204,7
1208,7
1232,4
1236,4
1254,4
1279,4
1258,4
1238,4
i
Chainstay length
441,5
445,5
441,5
445,5
441,5
441,5
445,5
445,5
j
Bottom bracket drop
6,2
4,9
6,2
5,0
6,2
6,2
5,2
5,3
k
Stack height
593,4
599,2
593,4
599,5
593,4
593,4
599,6
599,9
l
Reach
400,3
391,6
428,0
419,5
450,0
475,0
441,6
466,8
m
Standover height
675,8
671,0
675,0
669,8
673,1
673,1
668,4
668,6
x
Bottom bracket height
364,7
353,6
364,7
353,5
364,7
364,7
353,3
353,2
y
Front center
763,0
763,0
791,0
791,0
813,0
838,0
813,0
793,0
