Groupset
SRAM X0
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

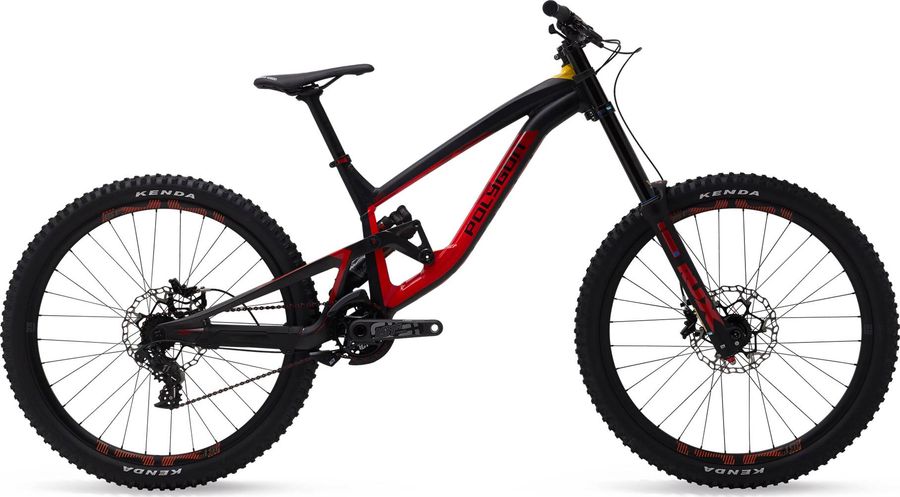

About the Polygon COLLOSUS DH9 TEAM 2020
The Polygon COLLOSUS DH9 TEAM 2020 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM X0 drivetrain of 7 gears (1x7). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
SPANK DIRECTOR, E:50MM
|
|---|---|
|
Brakes
|
TRICKSTUFF DIRETTISSIMA
|
|
Saddle
|
REVERSE FORT WILL TITAN
|
|
Seatpost
|
KS ETHER CARBON, 30.9MM
|
|
Handlebar
|
SPANK SPIKE 800 VIBROCORE, W:800MM R:30MM
|
|
Crankset
|
E13 LG1 RACE CARBON 32T, 165MM
|
|---|---|
|
Shifter
|
SRAM X0 DH 7-SPEED
|
|
Bottom bracket
|
E13 BSA FOR 83MM BB SHELL
|
|
Cassette
|
SRAM X01 DH
|
|
Rear derailleur
|
SRAM X01 DH
10s, 7s
|
|
|
|
|
Chain
|
KMC X11
|
|
Frame
|
ALX FRONT & ACX REAR DOWNHILL FRAME, 200MM TRAVEL, 157MM O.L.D.
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
SR Suntour Rux
|
|
Rims
|
E13 LG1 RACE CARBON W/ INTEGRATED CASSETTE
|
|---|---|
|
Tires
|
KENDA HELLKATE K1201 27.5”X2.40”
|
Geometry
| Size | SM High | SM Low | MD High | MD Low | LG High | XL High | LG Low | XL Low |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
383,0
|
383,0
|
383,0
|
383,0
|
383,0
|
383,0
|
383,0
|
383,0
|
|
b
Seat tube angle
|
75,5º
|
75,4º
|
75,5º
|
75,4º
|
75,5º
|
75,5º
|
75,4º
|
75,4º
|
|
c
Top tube length
|
554,8
|
559,0
|
582,5
|
586,8
|
604,5
|
604,5
|
608,9
|
634,0
|
|
d
Head tube length
|
110,0
|
110,0
|
110,0
|
110,0
|
110,0
|
110,0
|
110,0
|
110,0
|
|
e
Head tube angle
|
63,0º
|
62,2º
|
63,0º
|
62,3º
|
63,0º
|
63,0º
|
62,3º
|
62,3º
|
|
f
Rake
|
57,0
|
52,0
|
57,0
|
53,0
|
57,0
|
57,0
|
52,0
|
12,0
|
|
g
Trail
|
117,0
|
129,0
|
117,0
|
127,0
|
117,0
|
117,0
|
128,0
|
173,0
|
|
h
Wheelbase
|
1204,7
|
1208,7
|
1232,4
|
1236,4
|
1254,4
|
1279,4
|
1258,4
|
1238,4
|
|
i
Chainstay length
|
441,5
|
445,5
|
441,5
|
445,5
|
441,5
|
441,5
|
445,5
|
445,5
|
|
j
Bottom bracket drop
|
6,2
|
4,9
|
6,2
|
5,0
|
6,2
|
6,2
|
5,2
|
5,3
|
|
k
Stack height
|
593,4
|
599,2
|
593,4
|
599,5
|
593,4
|
593,4
|
599,6
|
599,9
|
|
l
Reach
|
400,3
|
391,6
|
428,0
|
419,5
|
450,0
|
475,0
|
441,6
|
466,8
|
|
m
Standover height
|
675,8
|
671,0
|
675,0
|
669,8
|
673,1
|
673,1
|
668,4
|
668,6
|
|
x
Bottom bracket height
|
364,7
|
353,6
|
364,7
|
353,5
|
364,7
|
364,7
|
353,3
|
353,2
|
|
y
Front center
|
763,0
|
763,0
|
791,0
|
791,0
|
813,0
|
838,0
|
813,0
|
793,0
|
