BikeWise

Polygon Collosus N9 XTR 2018

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm
Polygon Collosus N9 XTR 2018

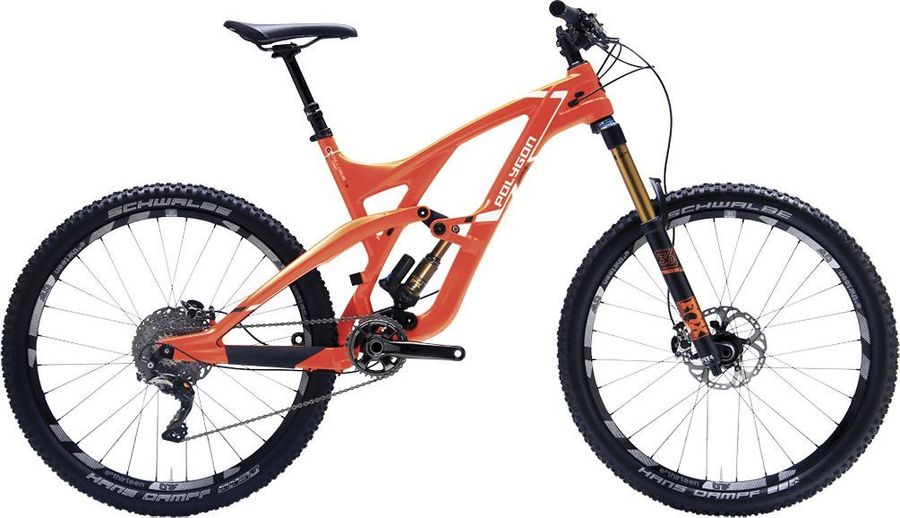

About the Polygon Collosus N9 XTR 2018

The Polygon Collosus N9 XTR 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube.

Features

The Polygon Collosus N9 XTR 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Kore Cubix, alloy, 50mm length
Saddle
fi'zi:k Gobi M7, manganese rail
Headset
FSA No. 57E, taper ID: 44/56mm
Seatpost
RockShox Reverb Stealth, 380mm length
Handlebar
Kore Mega, alloy, 760mm width
Brake lever
Shimano XTR BL-M9020
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR FC-M9020, 170mm length (S/M), 175mm length (L/XL)
Shifter
Shimano XTR SL-M9000, I-Spec
Bottom bracket
Shimano PressFit
Chain
Shimano CN-HG901 247 g
Average weight (g)
247
Chromizing treatment roller link pin
Model
CN-HG901-11
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
e*thirteen TRS Race alloy
Tires
Schwalbe Hans Dampf, tubeless ready, folding, 27.5" x 2.35" front, 27.5" x 2.25" rear
Rear hub
e*thirteen TRS Race alloy
Front hub
e*thirteen TRS Race alloy

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
470,0
520,0
b
Seat tube angle
66,0º
66,0º
66,0º
66,0º
c
Top tube length
565,0
590,0
615,0
640,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
66,3º
66,3º
66,3º
66,3º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-11,0
-11,0
-11,0
-11,0
k
Stack height
575,2
584,3
593,5
602,7
l
Reach
378,1
400,1
422,2
444,2
m
Standover height
686,5
713,0
750,0
779,8
x
Bottom bracket height
366,5
366,5
366,5
366,5
y
Front center
-
-
-
-
