Polygon Collosus N9 XX1 2019

MTB Enduro
Groupset
SRAM XX1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,74 kg
Front travel
160mm
Rear travel
160mm

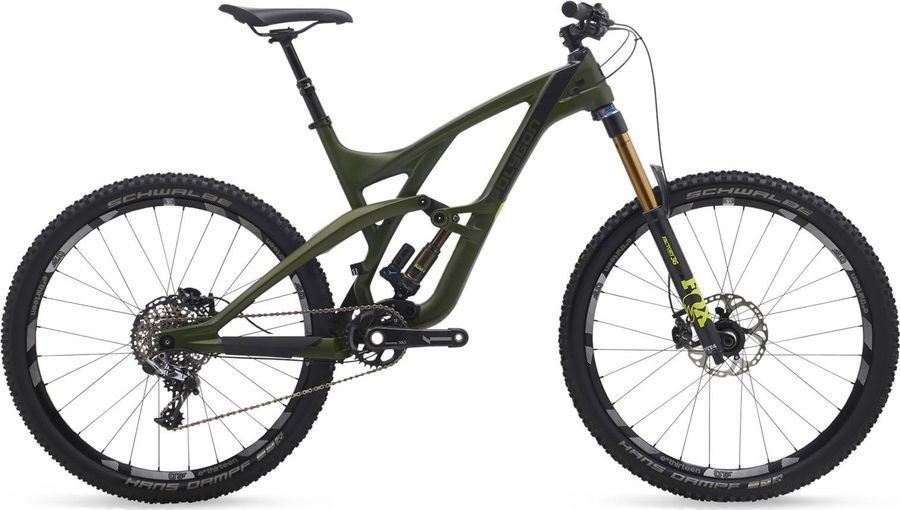

Polygon Collosus N9 XX1 2019

About the Polygon Collosus N9 XX1 2019

The Polygon Collosus N9 XX1 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 drivetrain of 11 gears (1x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,74 kg.

Features

The Polygon Collosus N9 XX1 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Lock-on
Components
Steam
Race Face Aeffect, 35mm, alloy, 50mm legnth
Saddle
fi'zi:k Gobi M7, manganese rail
Headset
FSA NO.57E, taper ID: 44mm/56mm
Seatpost
RockShox Reverb Stealth, 380mm
Handlebar
Race Face Aeffect, 35mm, alloy, 760mm legnth
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
SRAM XX1, 170mm on S/M, 175mm on L/XL
Shifter
SRAM XX1
Bottom bracket
SRAM GXP, pressfit
Chain
SRAM XX1 246 g
Chain connector
PowerLock
Chain length links
118 links
Color inner link
Silver
Color outer link
Silver
Compat speed
11s
Inner link finish
Chrome Plated
Model
CN-XX-1-A1
Name
XX1 HARD CHROME Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
246
Rear derailleur
SRAM XX1 11s 245 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-XX-1-A2
Name
XX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Ceramic
Speed
11s
Weight
245
Cassette
SRAM XG-1199 11s 268 g
Cog finish cassete
Silver
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
11-42t
Model
CS-XG-1199-A1
Name
XG-1199 X-DOME Cassette
Speed
11s
Technology cassete
XG
Weight
268
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
e*thirteen TRS Race Alloy wheelset
Tires
Front: Schwalbe Hans Dampf, 27.5”x2.35”, tubeless ready, folding, Rear: Schwalbe Hans Dampf, 27.5”x2.25”, tubeless ready, folding
Spokes
e*thirteen TRS Race Alloy wheelset
Rear hub
e*thirteen TRS Race Alloy wheelset
Front hub
e*thirteen TRS Race Alloy wheelset

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
470,0
520,0
b
Seat tube angle
72,0º
72,0º
72,0º
72,0º
c
Top tube length
565,0
590,0
615,0
640,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1113,9
1140,0
1166,0
1192,1
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
-11,0
-11,0
-11,0
-11,0
k
Stack height
575,2
584,3
593,5
602,7
l
Reach
378,1
400,1
422,2
444,2
m
Standover height
686,5
713,0
750,0
779,0
x
Bottom bracket height
366,5
366,5
366,5
366,5
y
Front center
-
-
-
-
