Polygon ENTIAT TR6 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
15 kg
Front travel
120mm

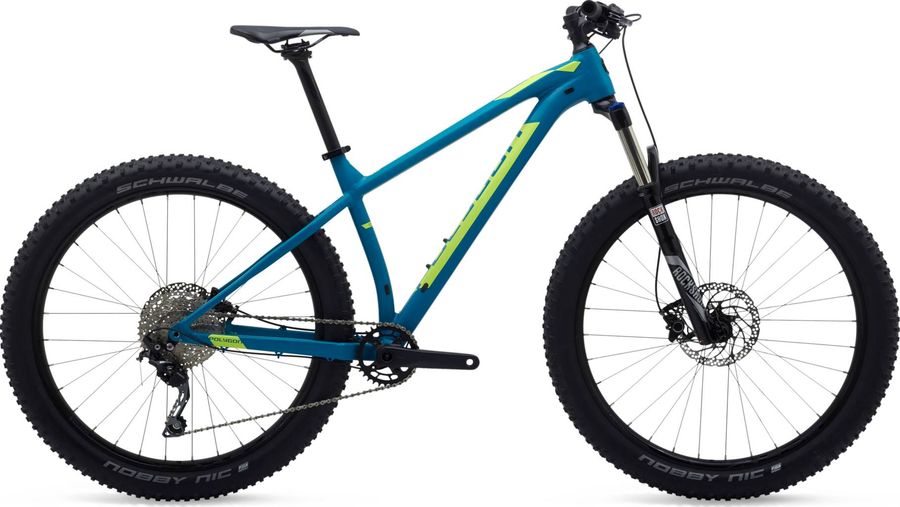

Polygon ENTIAT TR6 2020

About the Polygon ENTIAT TR6 2020

The Polygon ENTIAT TR6 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 15 kg.

Features

The Polygon ENTIAT TR6 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY, 60MM
Saddle
ENTITY ASSAULT, CR-MO RAIL
Seatpost
ENTITY XPERT, ALLOY, 30.9X400MM
Handlebar
ENTITY XPERT, ALLOY, 740MM
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
SAMOX 32T, 170MM (S-M), 175MM (L)
Shifter
SHIMANO DEORE SL-M610
Bottom bracket
BB BSA
Chain
KMC X10
Cassette
Sunrace MS3 11-42T 10-speed
Rear derailleur
Shimano Deore RD-M610-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M610-GS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
35T
Frameset
Frame
ALX TRAIL, BOOST 12X148MM O.L.D. POST MOUNT, INTERNAL SHIFTING ROUTE
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
ENTITY BOOST FRONT & REAR WITH SEALED BEARING HUBS
Tires
SCHWALBE NOBBY NIC, 27.5”X3.00”, CLINCHER

Geometry

Size SM MD LG
a
Seat tube length
395,0
435,0
485,0
b
Seat tube angle
73,75º
73,5º
73,5º
c
Top tube length
560,0
591,0
616,0
d
Head tube length
100,0
105,0
110,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
g
Trail
89,0
89,0
89,0
h
Wheelbase
1094,4
1122,9
1145,4
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
55,0
55,0
55,0
k
Stack height
617,8
622,4
627,1
l
Reach
378,5
405,1
425,8
m
Standover height
688,0
697,0
730,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
670,0
699,0
721,0
