Polygon ENTIAT TR8 2019

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,8 kg
Front travel
120mm

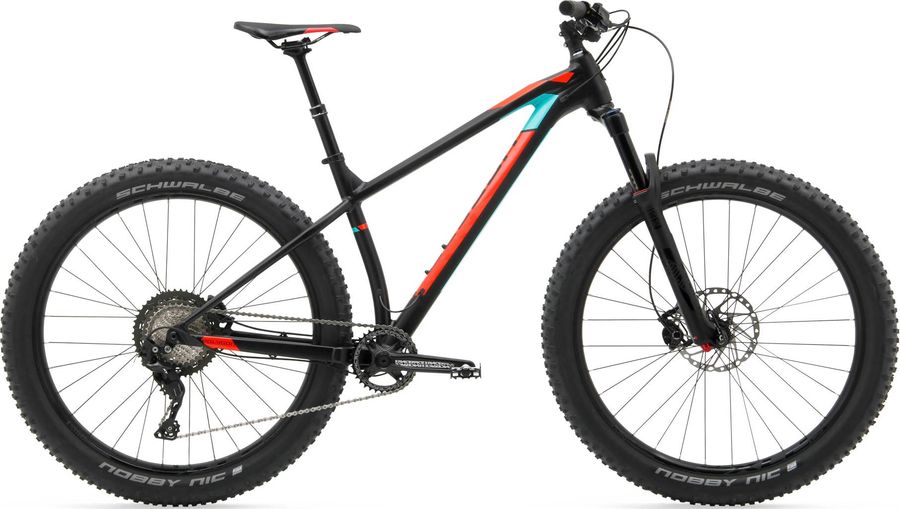

Polygon ENTIAT TR8 2019

About the Polygon ENTIAT TR8 2019

The Polygon ENTIAT TR8 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,8 kg.

Features

The Polygon ENTIAT TR8 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
ENTITY XPERT, ALLOY, 60MM
Saddle
ENTITY ASSAULT, CR-MO RAIL
Seatpost
ADJUSTABLE HEIGHT W/ ALLOY, 30.9X400MM
Handlebar
ENTITY XPERT, ALLOY, 740MM
Brakes
Shimano Deore BR-M615
Drivetrain
Crankset
RACE FACE RIDE SINGLE 34T, 170MM (S-M), 175MM (L)
Shifter
SHIMANO DEORE SLX SL-M7000
Bottom bracket
RACE FACE BB BSA
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Sunrace MX8 11-46T 11-speed
Chain
KMC X11
Frameset
Frame
ALX TRAIL, BOOST 12X148MM O.L.D. POST MOUNT, INTERNAL SHIFTING ROUTE
Front suspension
RockShox Revelation
Wheels
Rims
ENTITY BOOST FRONT & REAR WITH SEALED BEARING HUBS
Tires
SCHWALBE NOBBY NIC, 27.5”X3.00”, CLINCHER

Geometry

Size SM MD LG
a
Seat tube length
395,0
435,0
485,0
b
Seat tube angle
73,75º
73,5º
73,5º
c
Top tube length
560,0
591,0
616,0
d
Head tube length
100,0
105,0
110,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
g
Trail
89,0
89,0
89,0
h
Wheelbase
1094,4
1122,9
1145,4
i
Chainstay length
430,0
430,0
430,0
j
Bottom bracket drop
55,0
55,0
55,0
k
Stack height
617,8
622,4
627,1
l
Reach
378,5
405,1
425,8
m
Standover height
688,0
697,0
730,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
670,0
699,0
721,0
