Polygon SISKIU D5 2021

MTB Trail
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,03 kg
Front travel
100mm
Rear travel
120mm

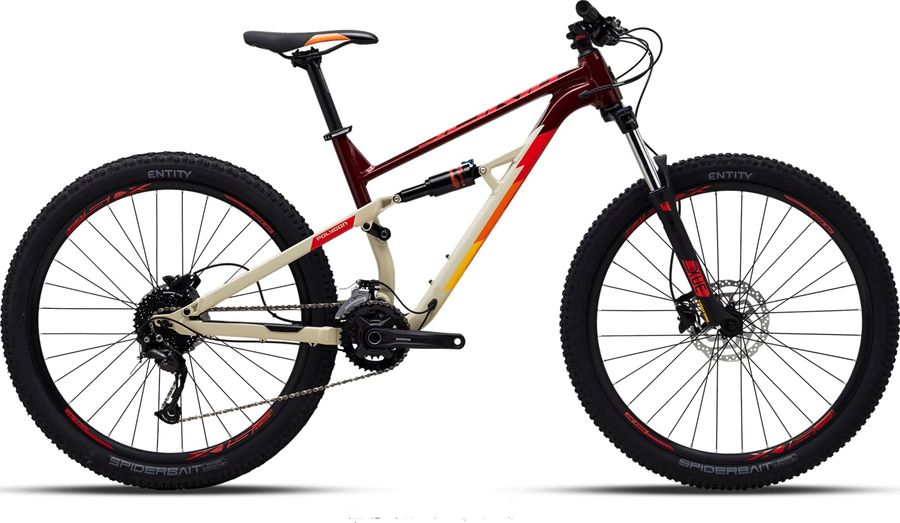

Polygon SISKIU D5 2021

About the Polygon SISKIU D5 2021

The Polygon SISKIU D5 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes. The bike weighs approximately 17,03 kg.

Features

The Polygon SISKIU D5 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
ENTITY SPORT, ALLOY
Brakes
SHIMANO HYDRAULIC DISC BRAKE
Saddle
ENTITY VOID SADDLE
Seatpost
ENTITY SPORT, ALLOY
Handlebar
ENTITY SPORT, ALLOY
Drivetrain
Crankset
SHIMANO ALTUS FC-MT2102 36T
Shifter
SHIMANO SL-M3100, 2x9 SPEED TRIGGER
Bottom bracket
INCLUDE CRANKSET
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC X9
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
ALX XC 120MM TRAVEL (27.5”) TAPER H/T QR BOOST
Front suspension
SR Suntour XCM HLO
Rear suspension
SR Suntour Raidon
Wheels
Rims
ALLOY DOUBLE WALL 32H
Tires
SPIDERBAIT TIRE 27.5"x2.25"

Geometry

Size SM MD LG
a
Seat tube length
395,0
435,0
485,0
b
Seat tube angle
75,5º
75,5º
75,5º
c
Top tube length
567,7
590,1
612,5
d
Head tube length
102,0
105,0
122,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
g
Trail
105,0
105,0
105,0
h
Wheelbase
1128,0
1152,0
1176,0
i
Chainstay length
427,0
427,0
427,0
j
Bottom bracket drop
27,0
27,0
27,0
k
Stack height
566,2
575,4
584,6
l
Reach
420,0
440,0
460,0
m
Standover height
671,0
691,0
724,0
x
Bottom bracket height
326,0
326,0
326,0
y
Front center
702,0
726,0
750,0
