BikeWise

Polygon Siskiu D6 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

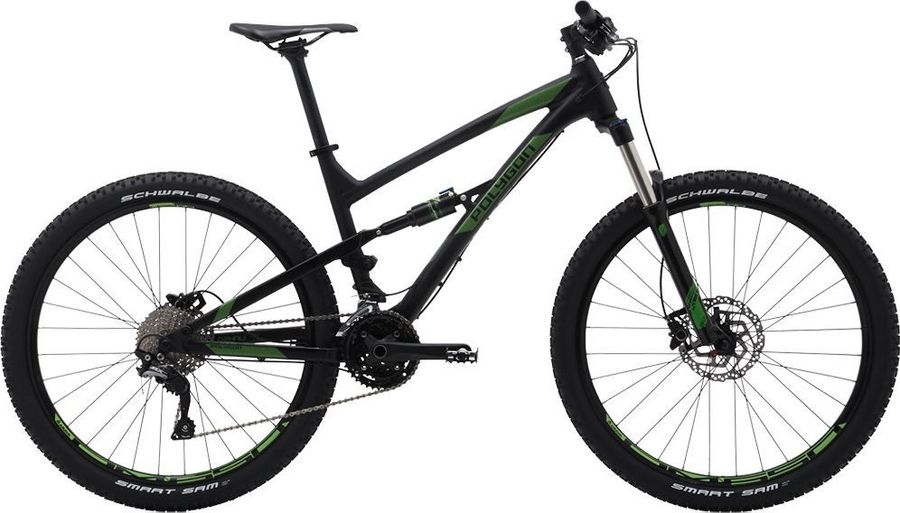

Polygon Siskiu D6 2018

About the Polygon Siskiu D6 2018

The Polygon Siskiu D6 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 30 gears (3x10). Its features include hydraulic disc brakes.

Features

The Polygon Siskiu D6 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
VP Component VP-195E, alloy
Components
Steam
Entity Xpert, alloy, 60mm length
Saddle
Entity Assault, Cr-Mo rail
Headset
FSA No. 57B-1, taper ID; 44/56mm
Seatpost
Entity Xpert, alloy, 350mm length
Handlebar
Entity Xpert, alloy, 740mm width
Brake lever
Shimano BL-M365
Brakes
Shimano Altus BR-M365
Drivetrain
Crankset
Two-piece, 170mm length (S/M), 175mm (L/XL)
Shifter
Shimano Deore SL-M610, 3x10
Bottom bracket
Integrated BSA
Front derailleur
Shimano Deore FD-M612-H
Chain
KMC X10
Rear derailleur
Shimano SLX RD-M7000-10-SGS 313 g SGS 10s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M7000-10-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Aluminum
Front suspension
SR Suntour XCR
Rear suspension
SR Suntour Raidon
Wheels
Rims
Araya DM-650
Tires
Schwalbe Smart Sam, 27.5" x 2.25"
Rear hub
Alloy
Front hub
Alloy

Geometry

Size SM MD LG XL
a
Seat tube length
385,0
435,0
485,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,0
587,0
612,0
632,0
d
Head tube length
115,0
115,0
125,0
125,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
21,0
21,0
21,0
21,0
k
Stack height
584,6
584,6
593,8
593,8
l
Reach
405,4
425,4
447,9
467,9
m
Standover height
678,8
705,8
742,6
759,5
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
